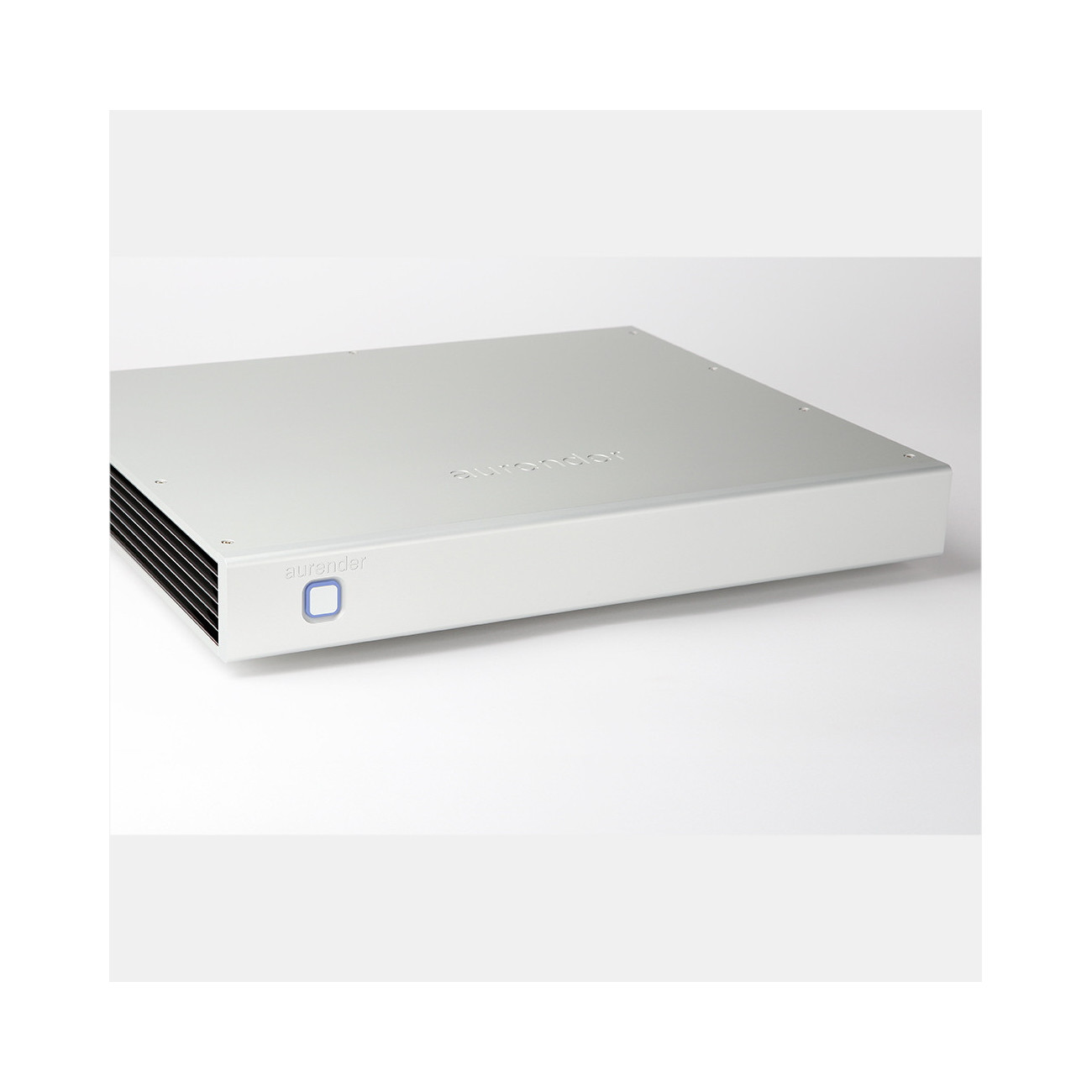

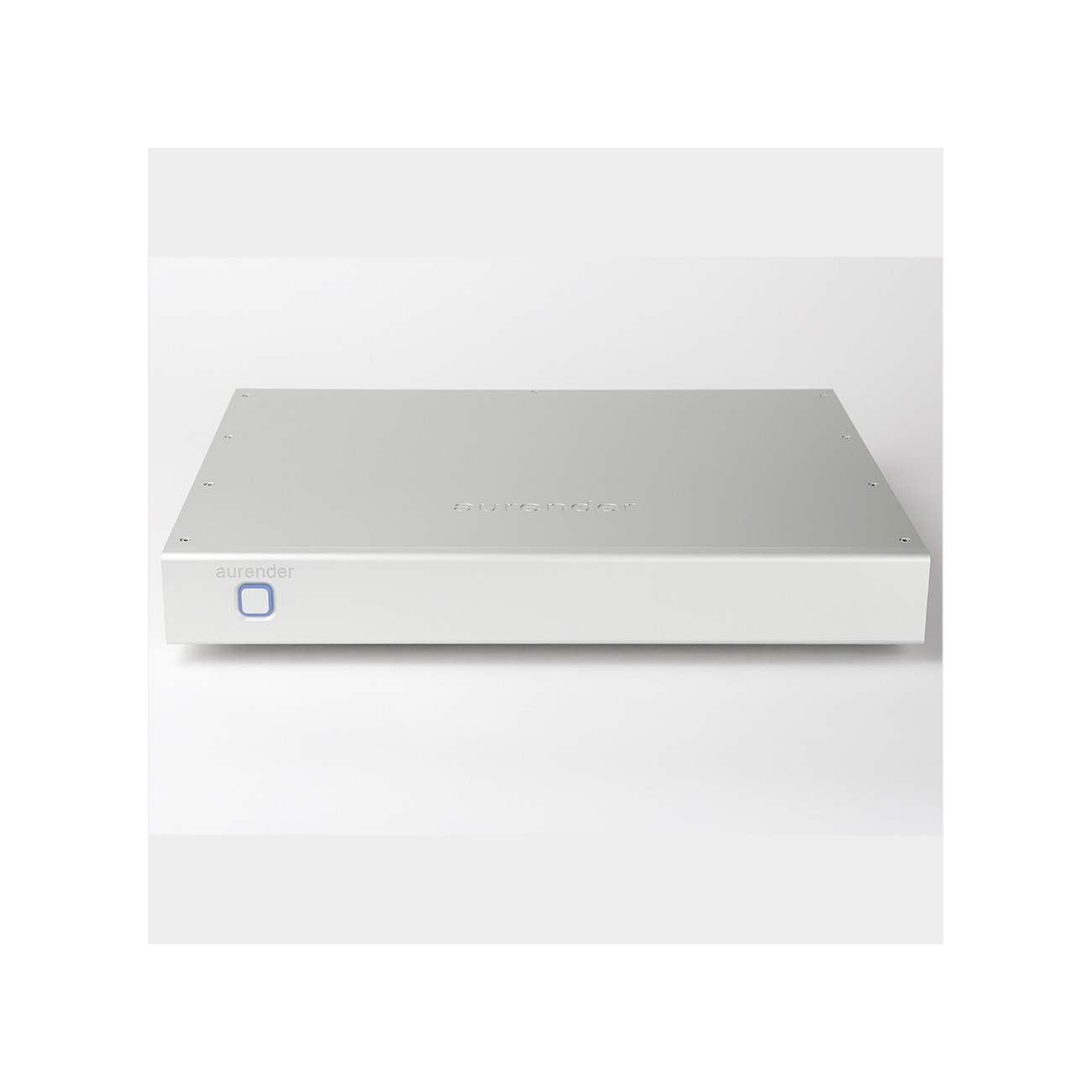

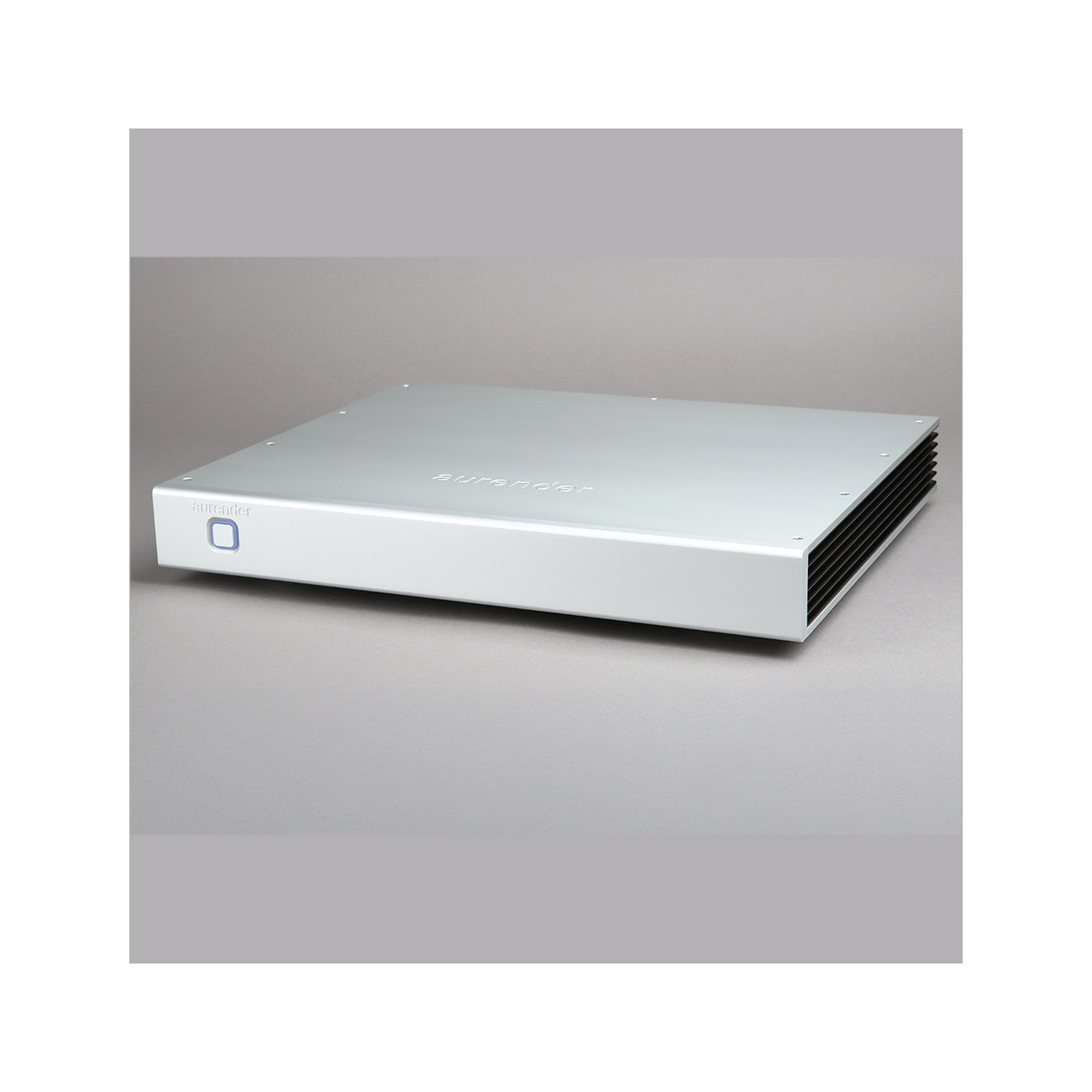

NH10 Network Hub Silver* (*ON ORDER)

Redefining Network Performance for Music Lovers

The NH10 is an audiophile-grade network hub engineered to elevate digital audio playback to an entirely new level. Through clean power delivery, precise timing, and noise-free signal transmission, it ensures music is reproduced with remarkable accuracy and emotional impact. Unlike conventional network hubs, the NH10 embodies advanced design principles and meticulous fine-tuning, setting a new standard in digital audio networking.

Exceptional Jitter Reduction

At its core, the NH10 features an ultra-stable OCXO (Oven-Controlled Crystal Oscillator) with frequency stability rated at <0.005 ppm. Controlled by FPGA synchronization, all internal operations are aligned to a single master clock, eliminating timing discrepancies.

For even greater precision, a BNC master clock input (10 MHz, 50 ohm) allows integration with external reference clocks.

Outstanding Noise Suppression

The NH10’s precision-machined aluminum chassis shields against vibration and electrical interference, ensuring a quiet and stable operating environment.

An LED OFF switch further reduces noise from port activity indicators.

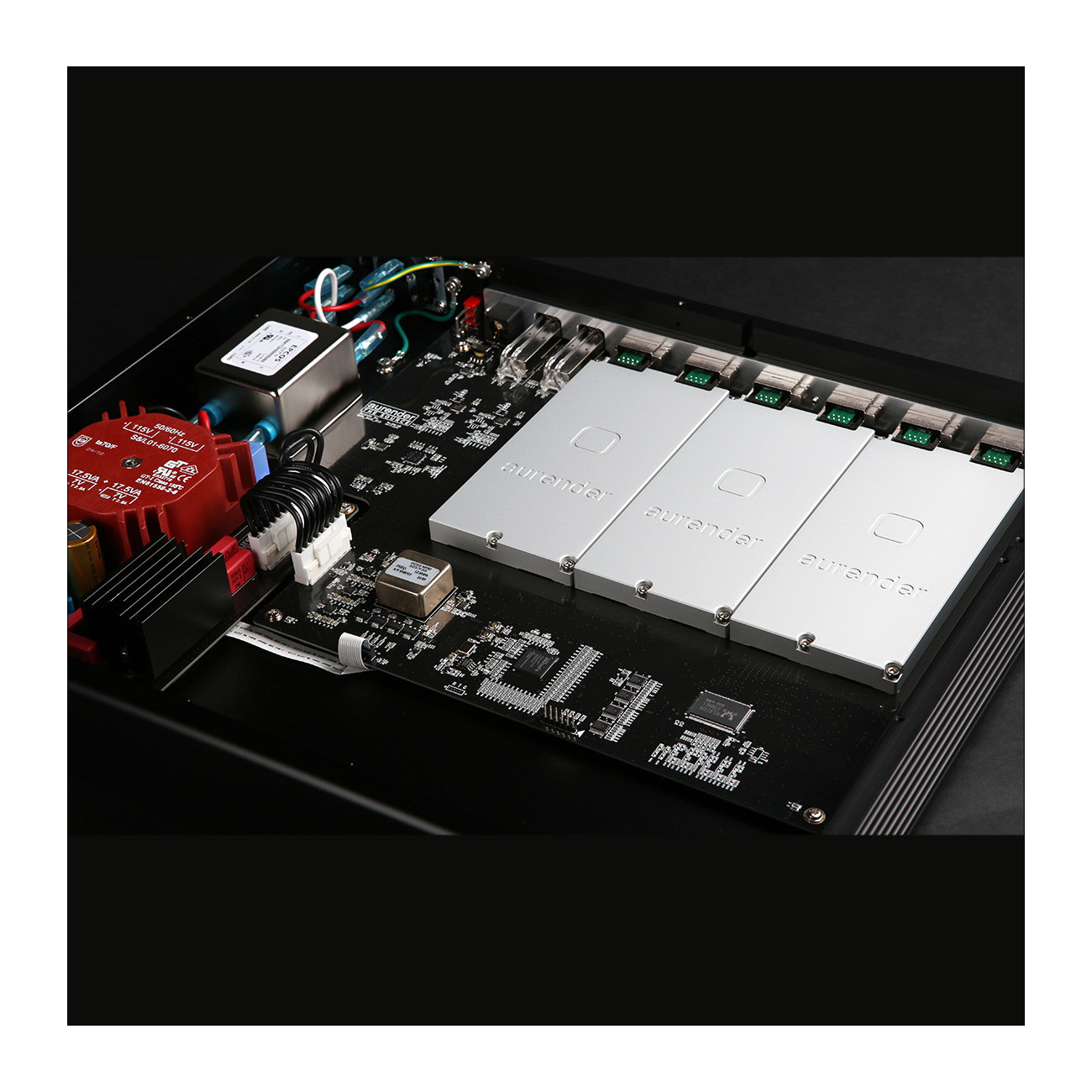

Pure Linear Power Supply

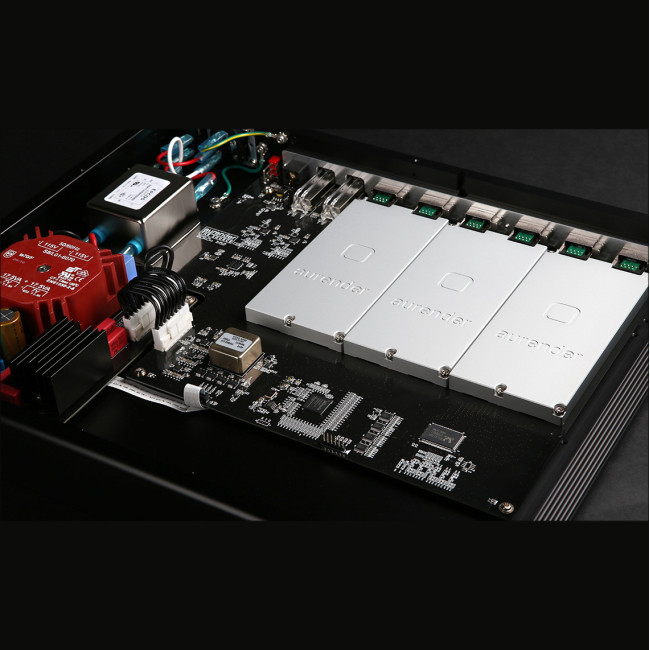

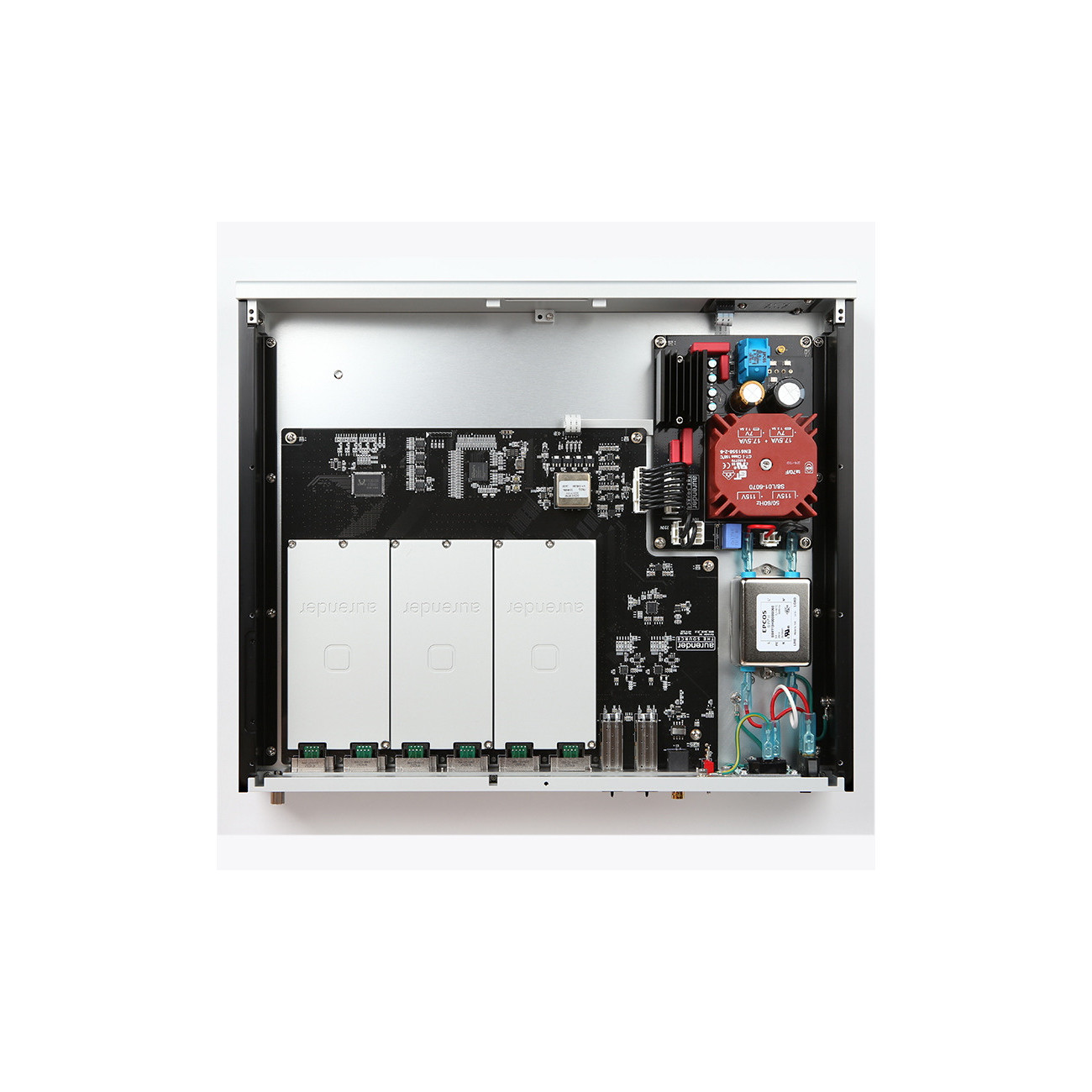

Every circuit within the NH10 is powered exclusively by linear regulation—without noisy DC-to-DC converters. This approach provides exceptionally clean power delivery, surpassing many competing products and minimizing power-related distortions at the source.

Comprehensive Galvanic Isolation

Each RJ-45 port incorporates advanced filtering for signal purity, while optically isolated SFP ports provide complete galvanic isolation. This eliminates electrical coupling between devices and ensures uncompromised data transmission.

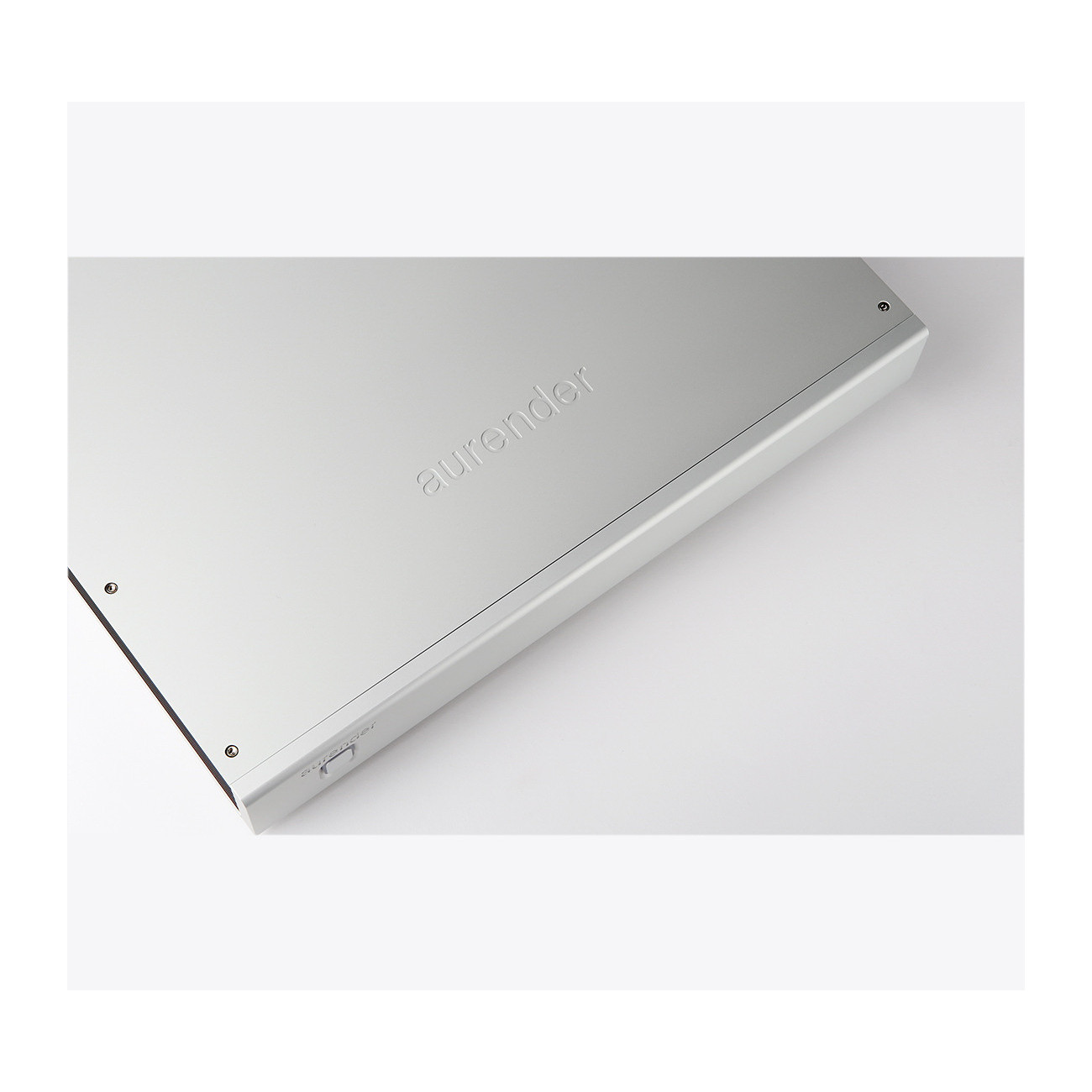

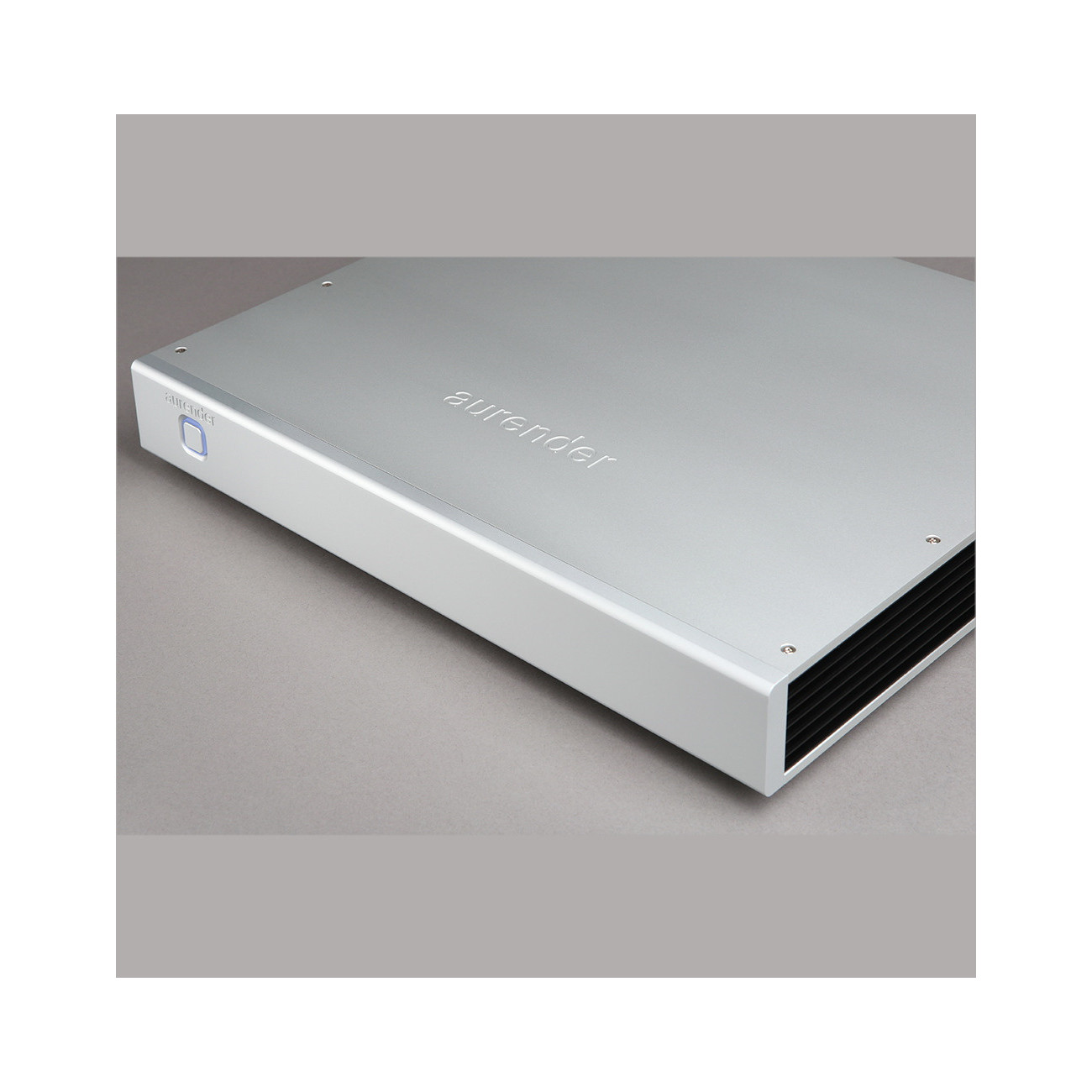

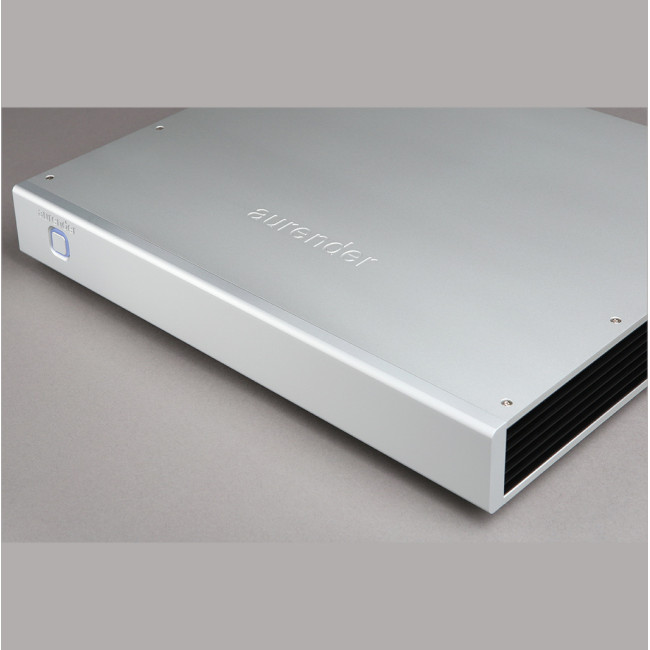

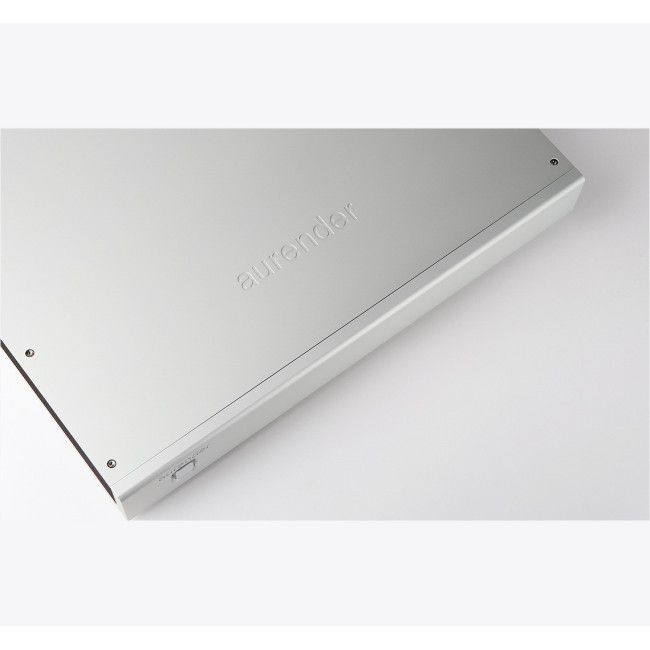

Premium Build Quality

The robust aluminum chassis not only enhances durability but also contributes to acoustic performance, providing a solid foundation for uncompromised sound quality.

Specifications

Standards Compliance: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z

Data Transfer Rate LAN1-6: 100Mbps/1000Mbps, SFP1-SFP2 : 100Mbps/1000Mbps

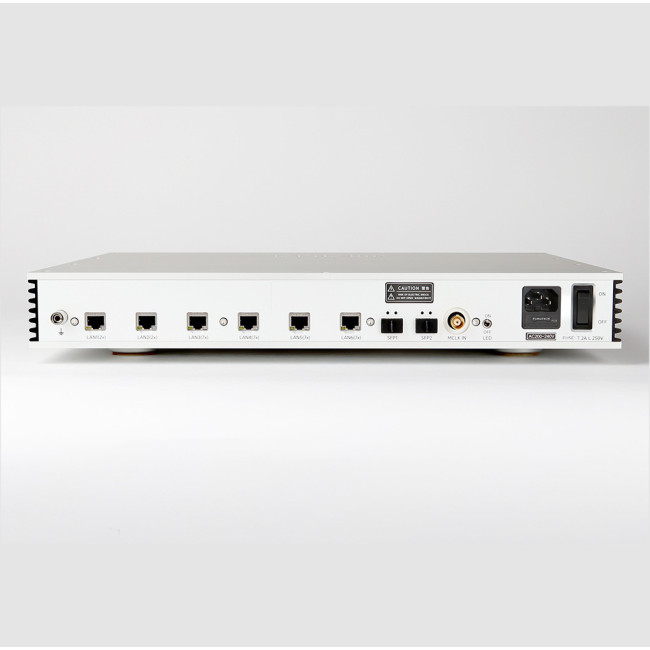

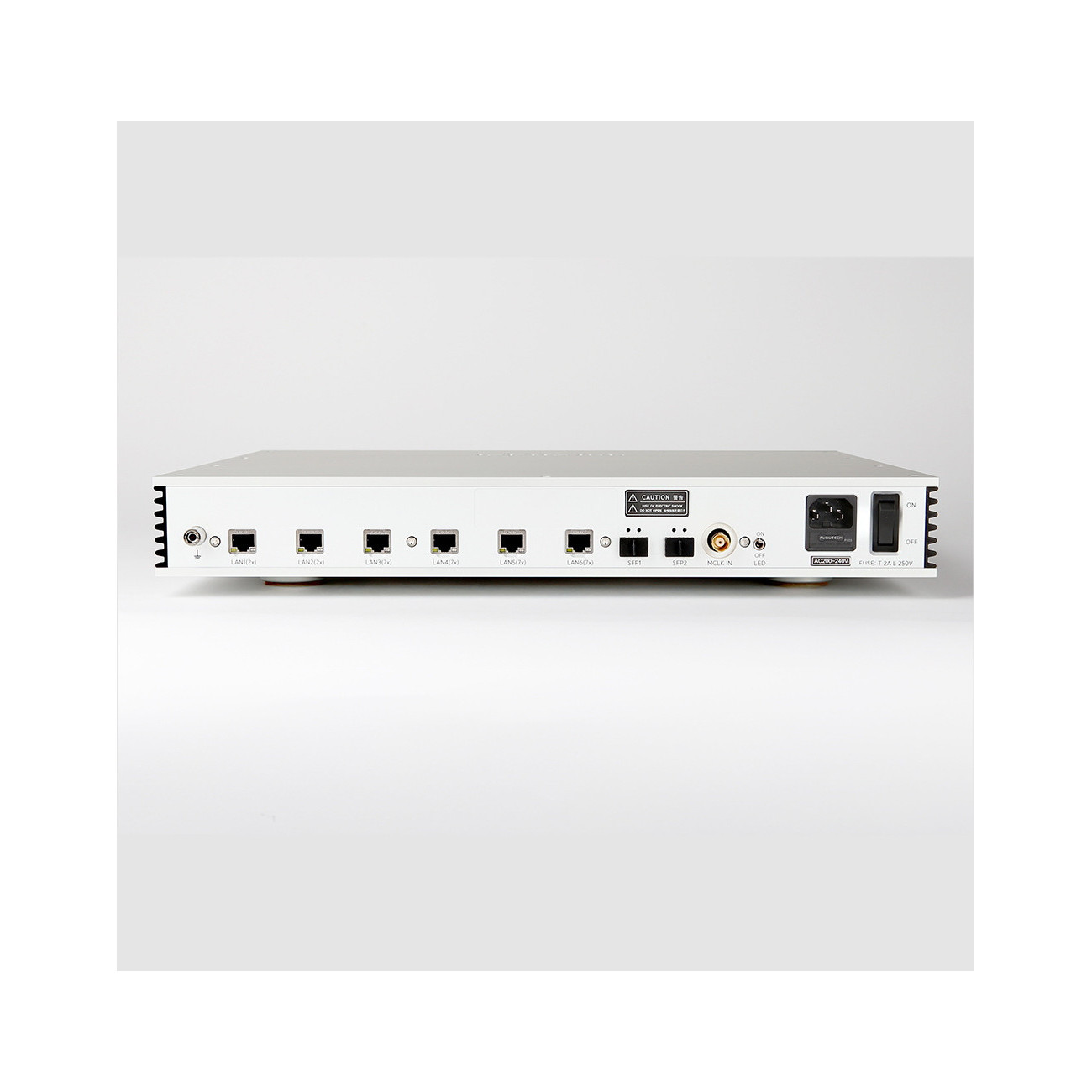

Number of Port (Filter) LAN Ports : LAN1-2(2x), LAN3-LAN6(7x), SFP Ports : 2 Connector Type RJ-48 8pin, SFP

Transmission Distance: 100m (Max)

LED On/Off Toggle Switch

OCXO Spec Frequency Stability: < 0.005ppm

Master Clock In Spec: 10MHz, 0.7Vrms, BNC(50ohm)

Input Voltage: 110V / 220V (Fuse: 2A, 5mm x 20mm, Slow-blow)

Operating Temperature: 10°C to 35°C

Size: 430 x 355 x 56 mm (unit only), With Foot (68 mm) 16.9 x 14.0 x 2.2 inch (unit only) With Foot (2.7 inch)

Weight: 8.0kg (17.6lbs)

Power Consumption

Stand by : 3.1W

Power On : Start Warm-up 26W (Max)

State Lock: 20W (Max)
