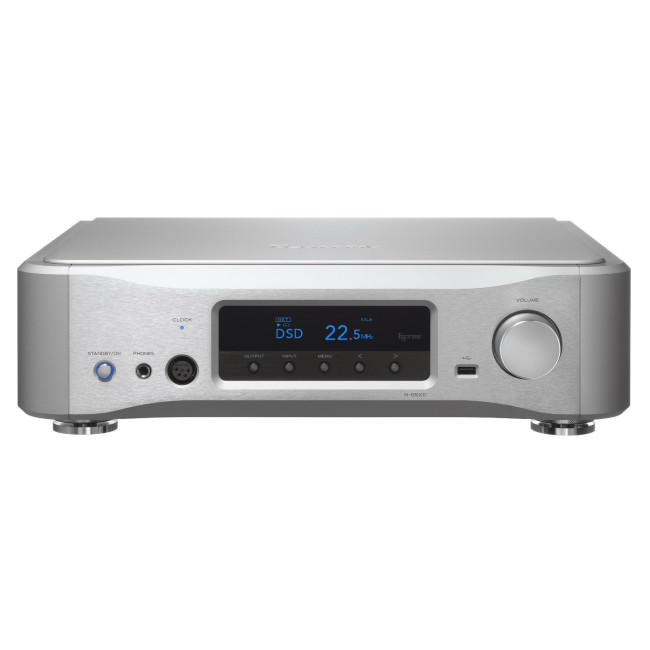

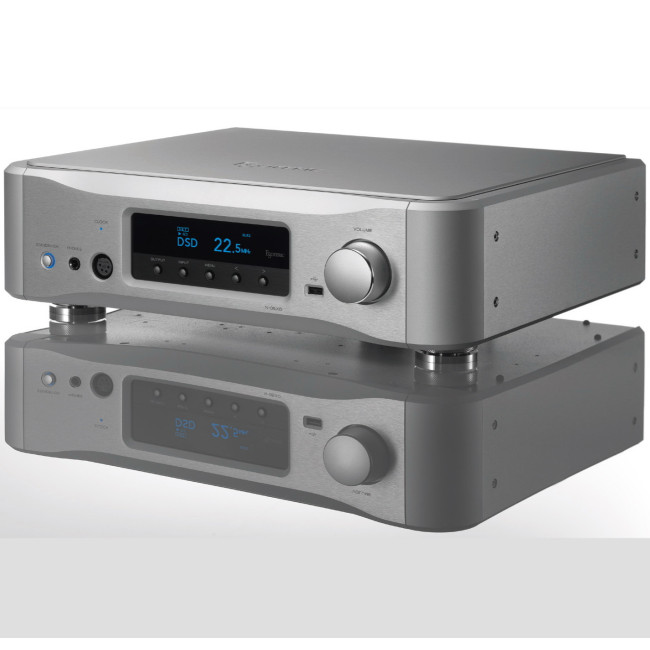

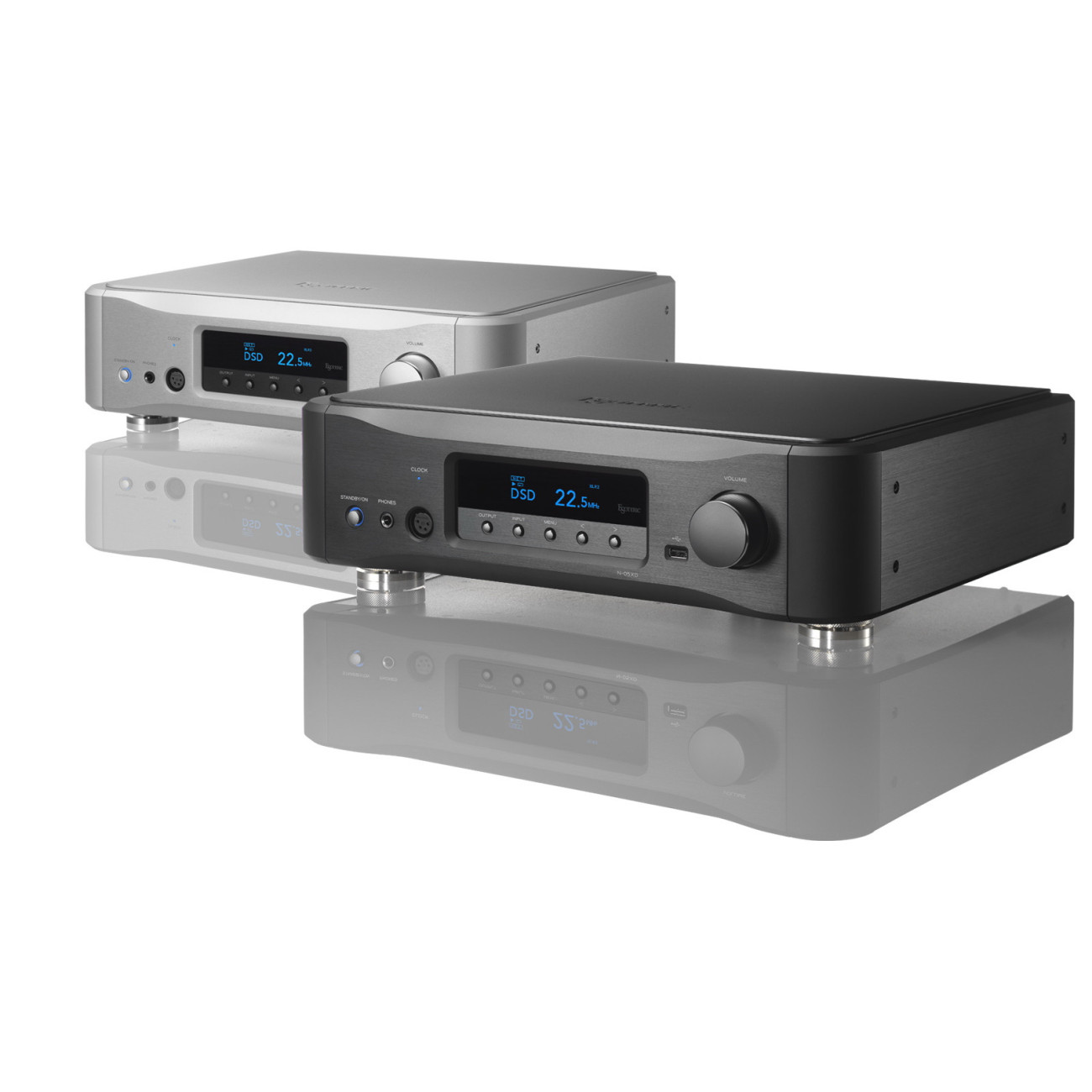

N-05XD

An integration of essences only Esoteric can achieve.

As Esoteric’s first-ever network DAC/preamp, the N-05XD was specifically designed to deliver superior sound quality from the smallest system configurations combining your favorite power amplifier, speakers, and headphones. Integrating fully balanced circuitry directly derived from Esoteric’s flagship series, the N-05XD’s network engine is equipped with a pure, dedicated linear power supply and an in-house designed discrete DAC that ensures that its preamplifier and headphone amplifier are capable of clearly reproducing the full sound of a recording’s original master.

A seamless integration of the most Esoteric-like essences, the N-05XD has been thoroughly refined under the guiding principles of ultimate sound quality. Just a touch of its volume knob clearly reveals this quality in its most exquisite form, and promises the fullest and most satisfying enjoyment of Esoteric’s pure signature sound. No longer must superior sound quality be sacrificed in the pursuit of a simplified high-end audio system.

Specifications

Digital Audio Inputs:

XLR x 1

Coaxial x 2

Optical x 2

USB x 1

Ethernet x 1

USB Drive x 2 (Front, Rear)

Bluetooth®

Analog Audio Inputs:

XLR x 1 pair

RCA x 1 pair

Analog Audio Outputs: XLR/ES-Link Analog x 1 pair

ES-Link Analog PRE-OUT x 1 pair

RCA x 1 pair

Clock Input:

BNC x 1

Unbalanced Headphone Out: 6.3mm Stereo x 1

(Max Output Power 750mW + 750mW/32Ω)

Balanced Headphone Out:

4-pin XLR x 1

(Max Output Power 1500mW + 1500mW/32Ω)

Frequency Response:

5Hz to 75kHz (–3dB)

S/N Ratio: 105dB (IHF-A)

Total Harmonic Distortion:

0.0015% (1kHz)

Power: 120V AC 60Hz, 220-240V AC 50Hz

Overall Dimensions (W×H×D): 445 x 131 x 377mm (include protrusions)

Weight: 13.8kg
