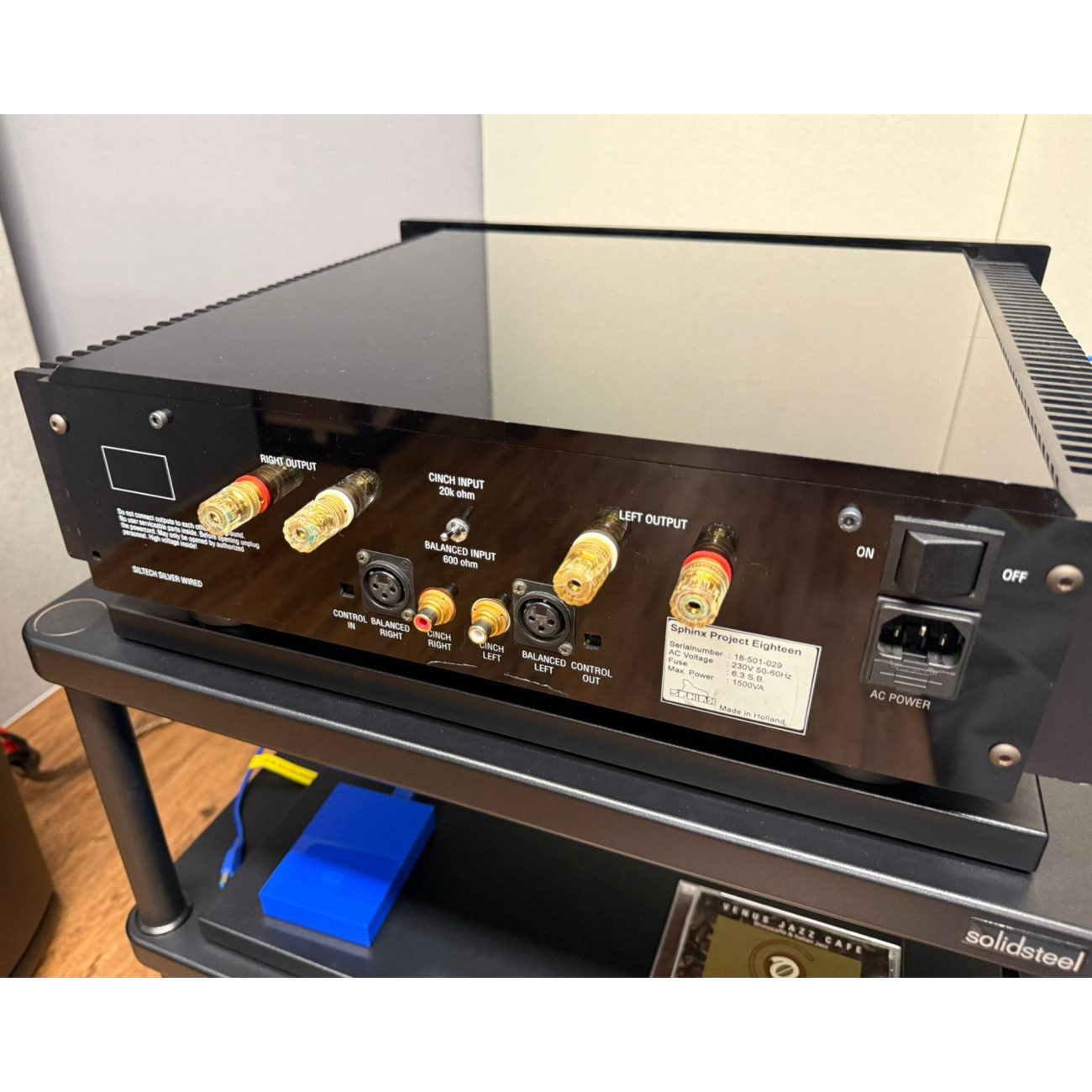

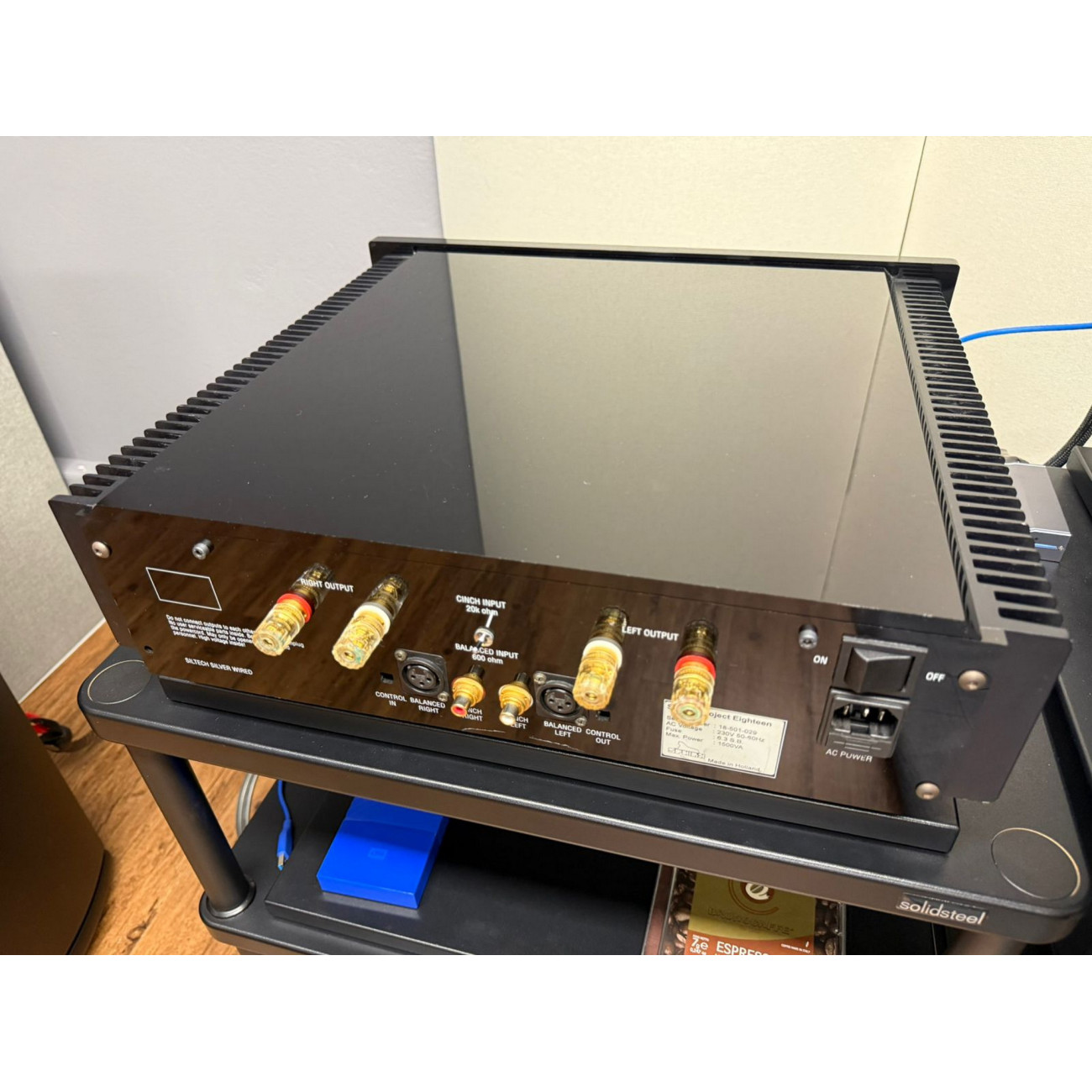

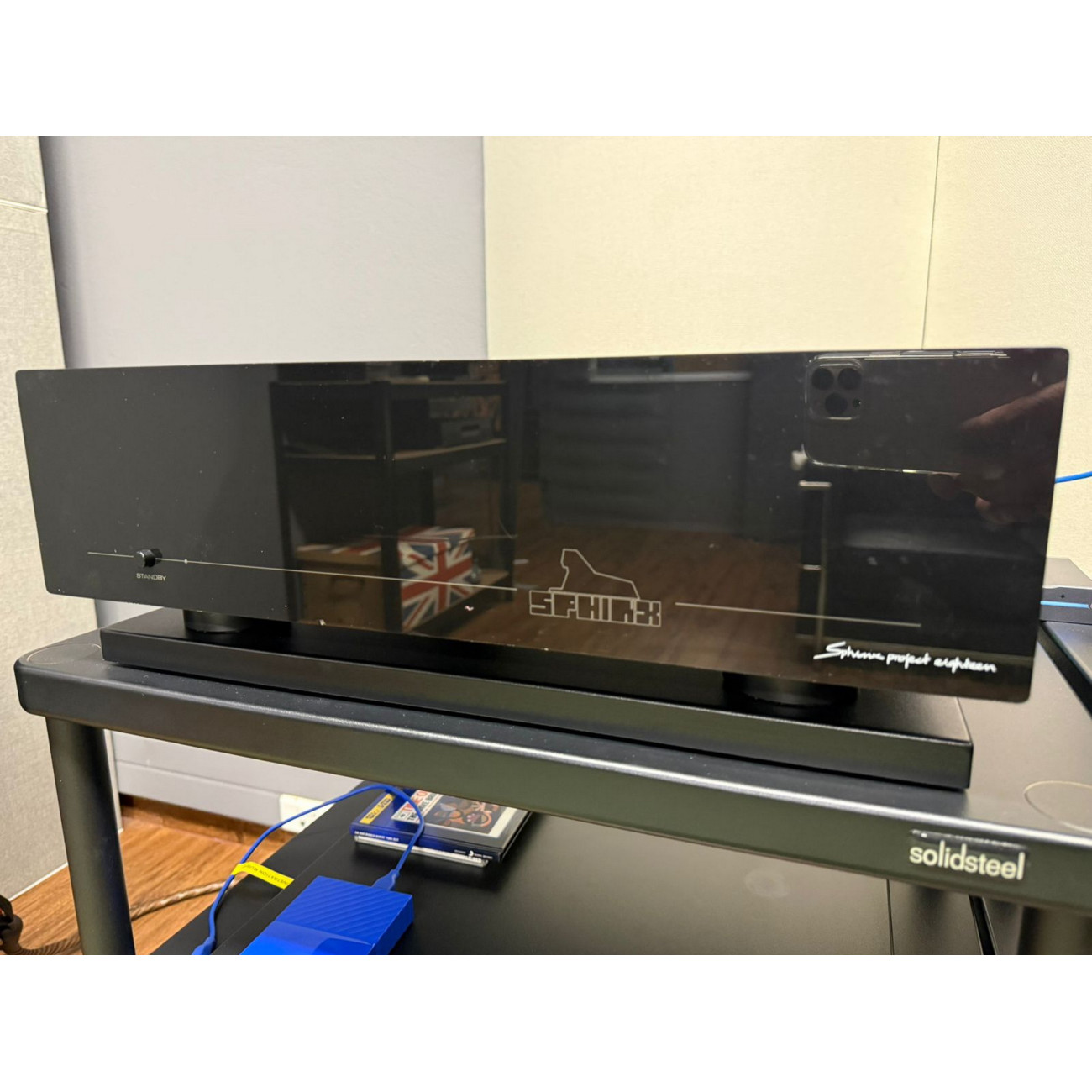

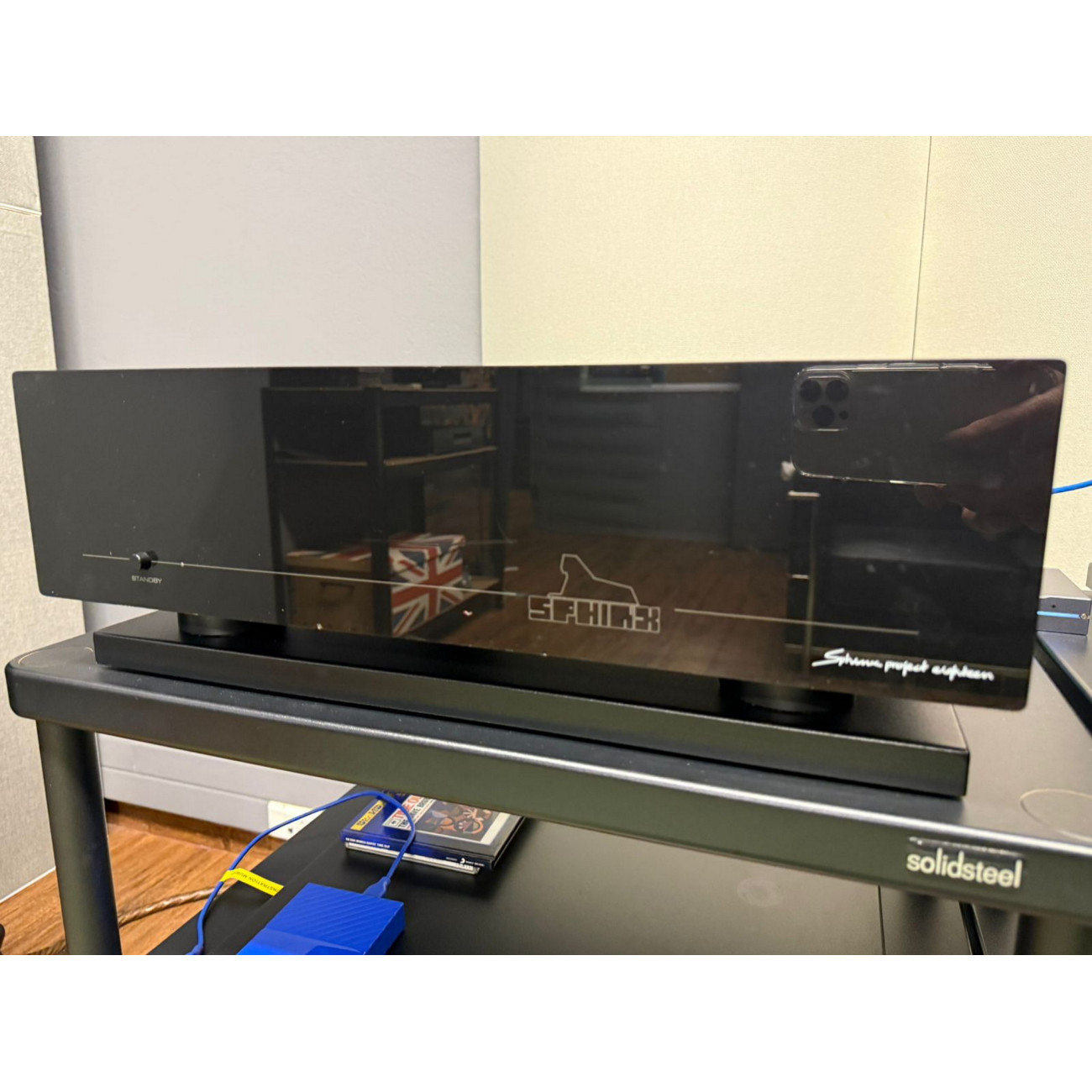

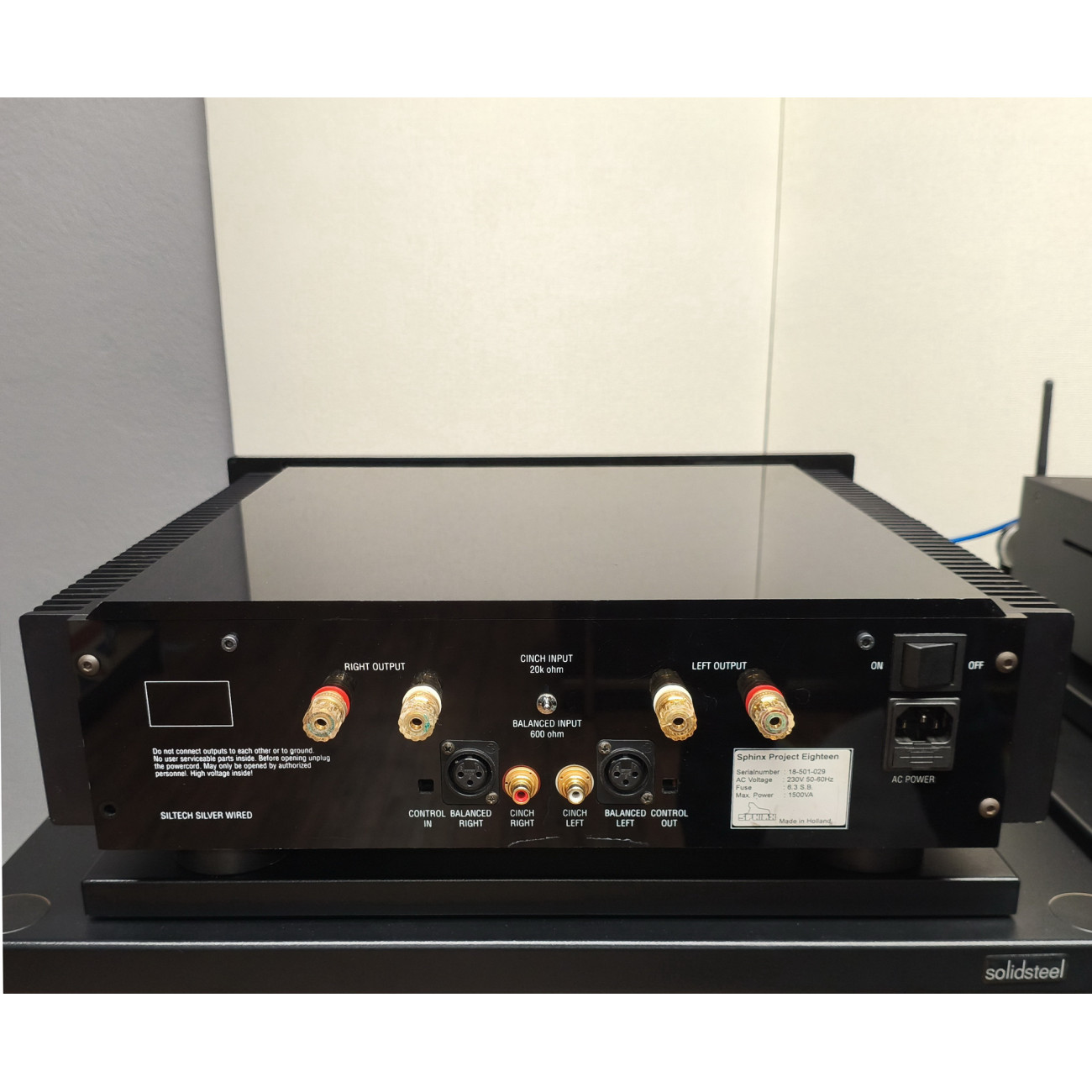

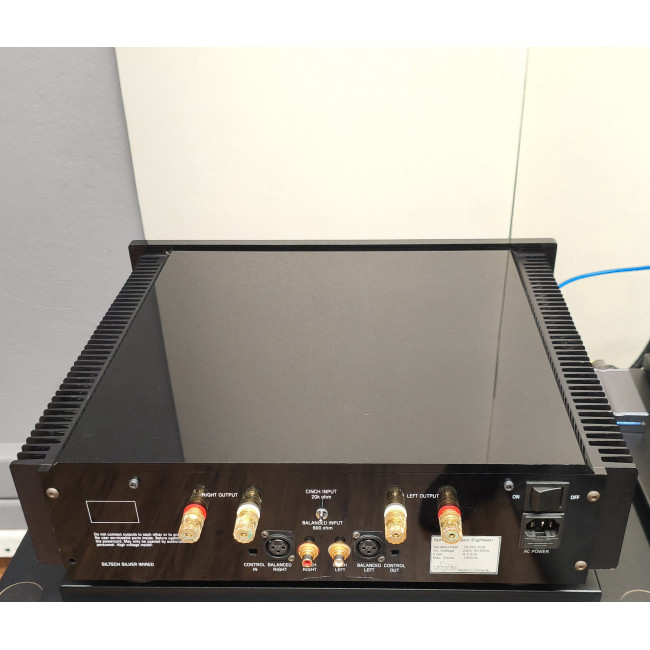

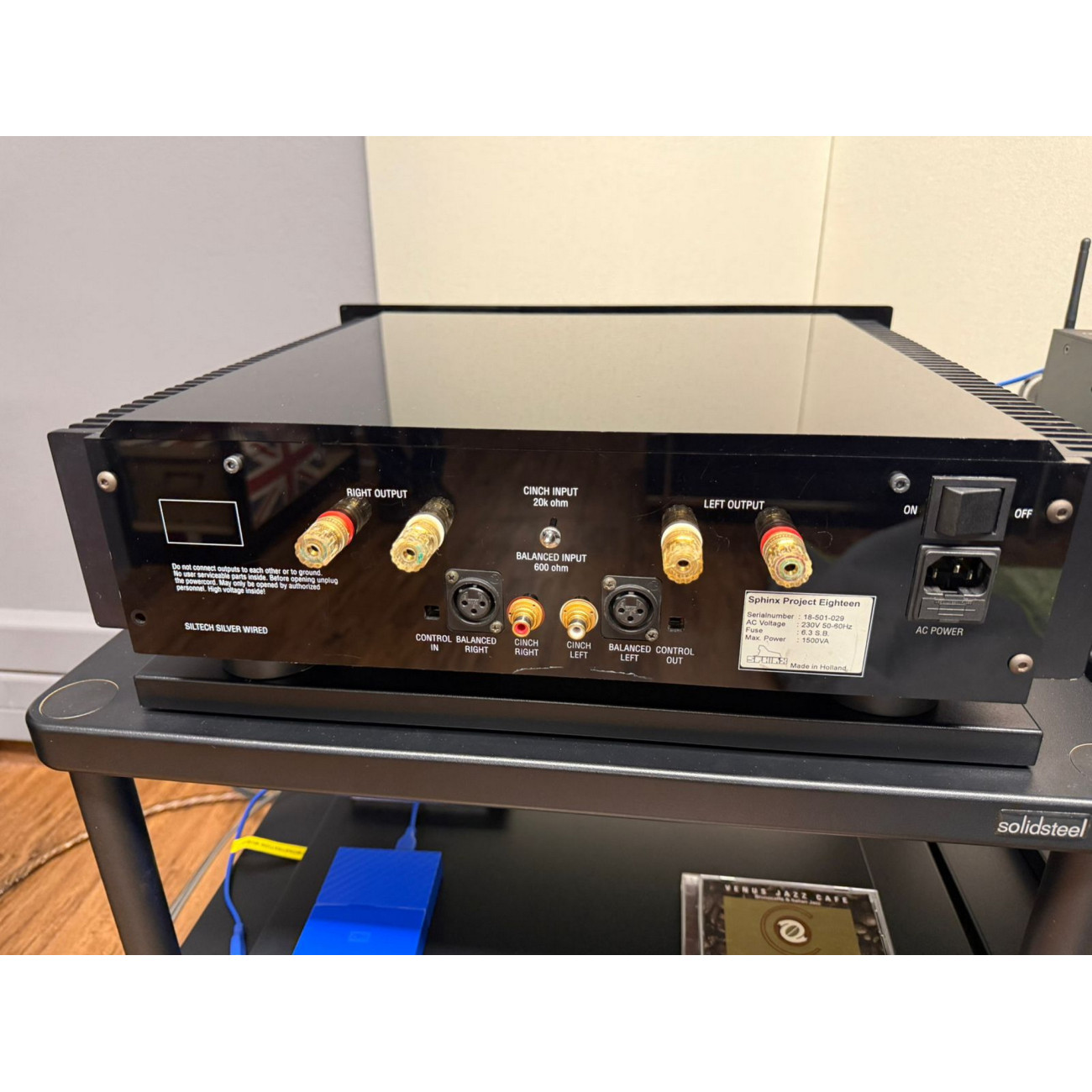

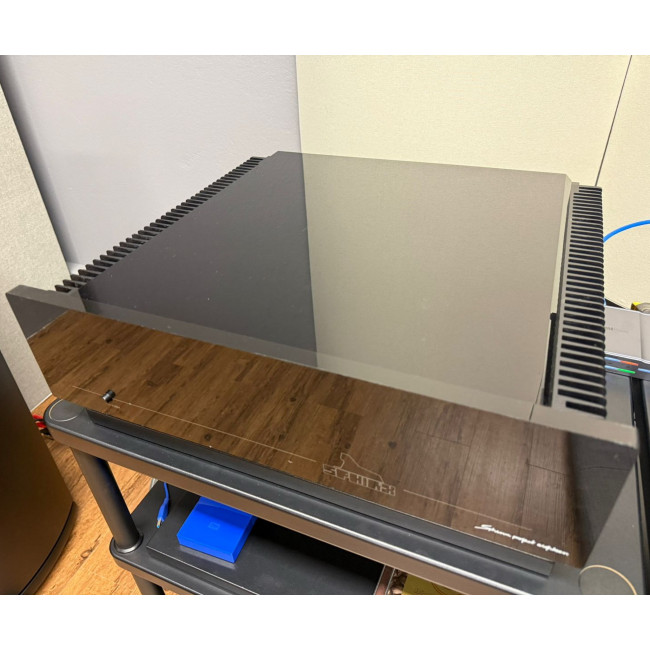

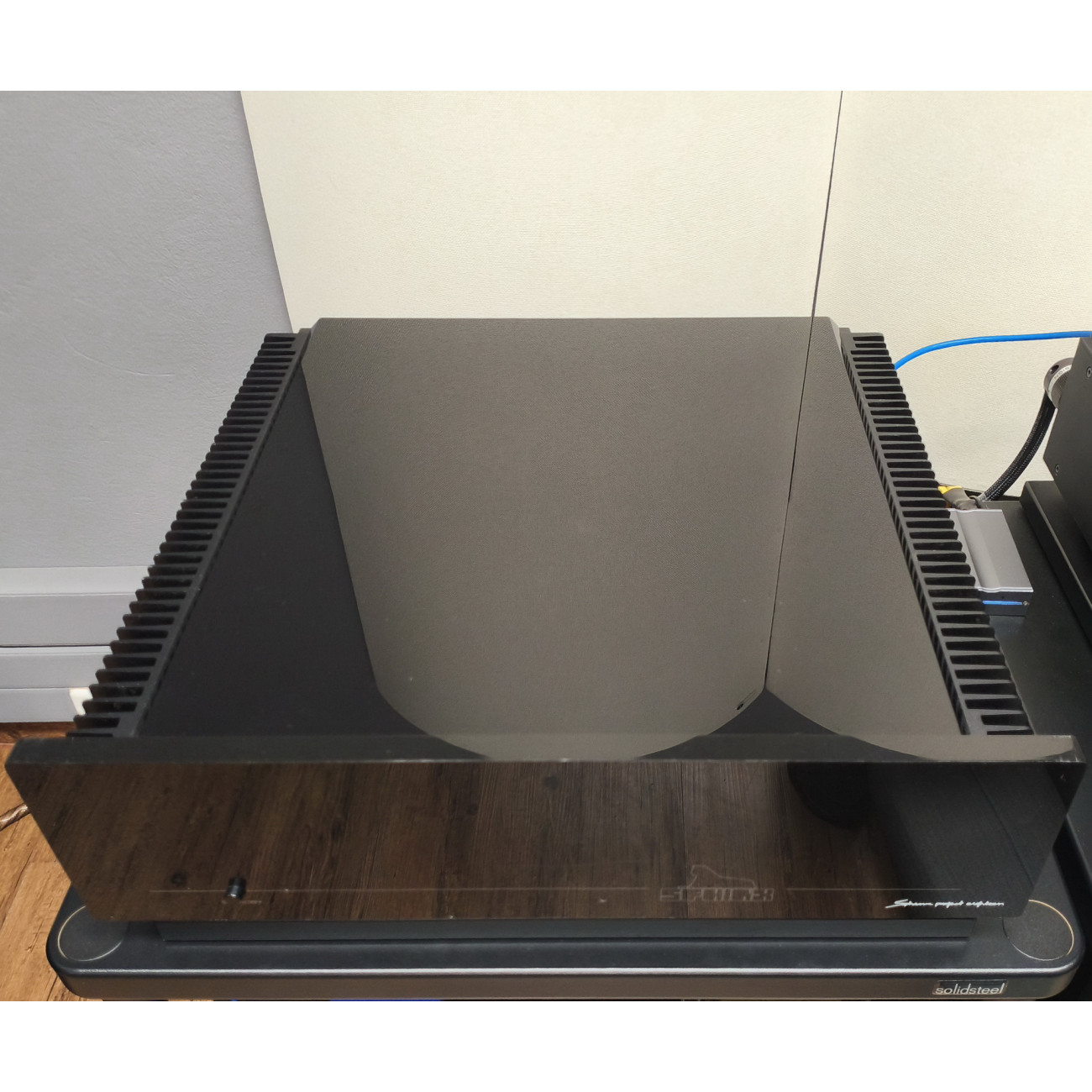

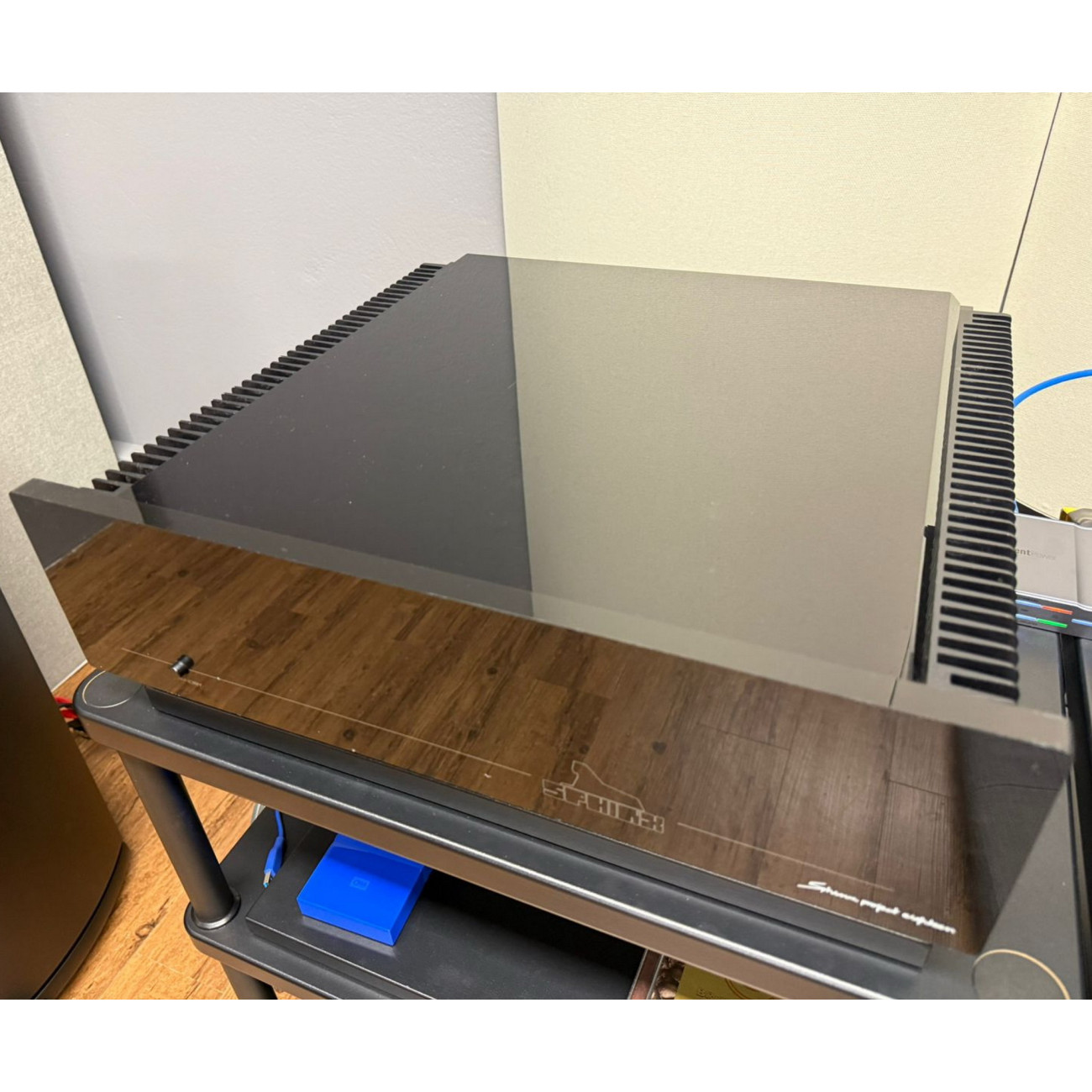

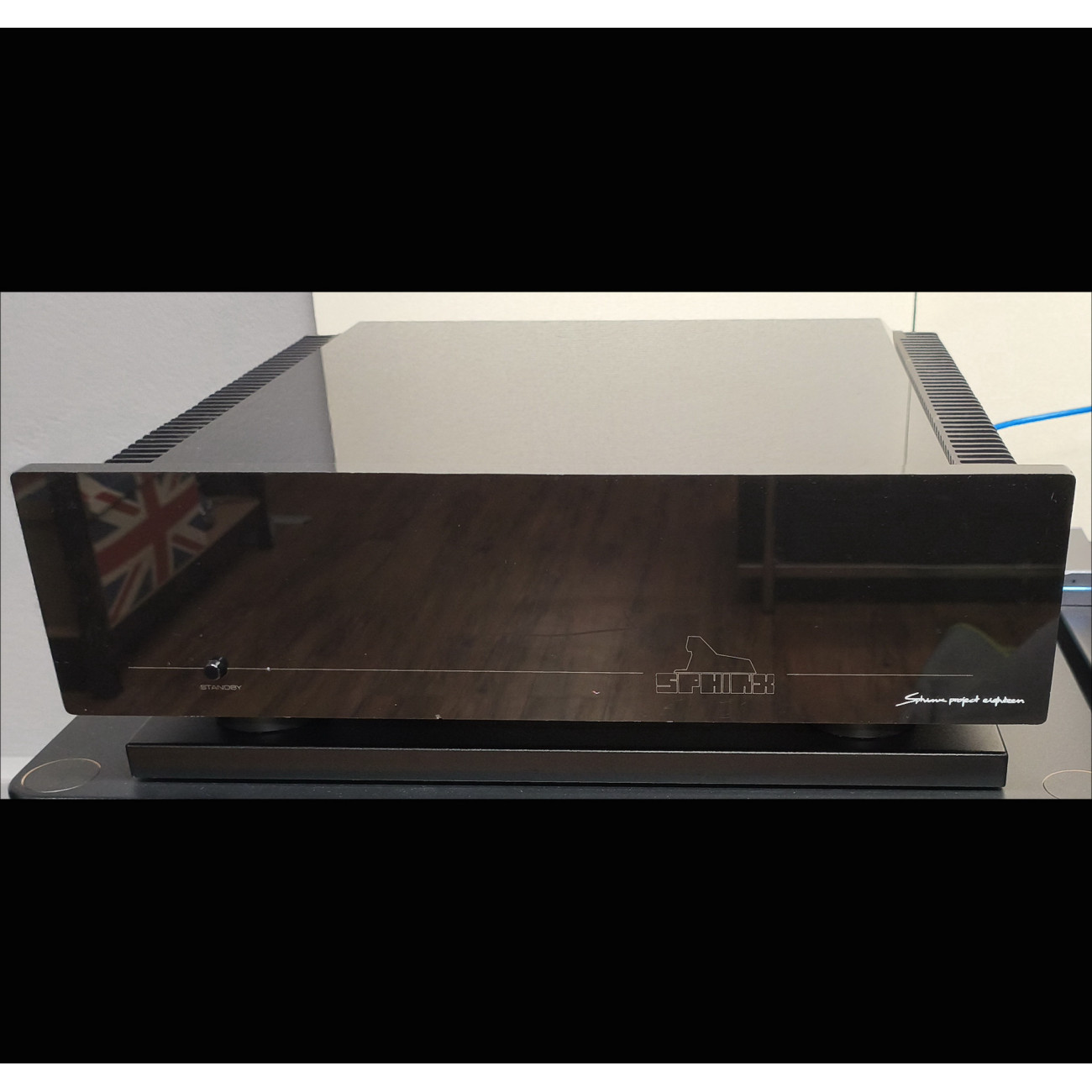

Sphinx Project Eighteen Dual Mono Power Amplifier
Reference:
€2,350.00
Tax included
For sale a Sphinx Project Eighteen
Sphinx Project Eighteen: Designed for the ever-increasing group of quality-conscious audiophiles.
>2x 160 W into 8 ohm (22.0 dBW), THD <0.01%
>2x 280 W into 4 ohm (24.5 dBW), THD <0.01%
>2x 420 W into 2 ohm (26.2 dBW), THD <0.01%
Pre-owned item with user's manual, but no original packaging
LOCAL PICKUP ONLY, NO SHIPPING
ΔΥΝΑΤΟΤΗΤΑ ΔΙΑΚΑΝΟΝΙΣΜΟΥ ΚΑΤΟΠΙΝ ΕΠΚΟΙΝΩΝΙΑΣ
Up to 12 interest free installments with Credit Card
Shipping Options
Sphinx Project Eighteen
- Special toroidal transformer (one for each channel!) of 650 VA has the size of a 1000 VA model: safely over-specified.
- Generous energy reserve of 66,000 µF per channel (formed by 30 capacitors in parallel), unlimited power is available for the largest signal peaks.
- Three completely separate power supplies for the input section, driver section and the logic and indicator section.
- Equivalent input noise value of <1 µV (<-120 dBV): remarkable for a pre-amp, but really astounding for a big power amp with two transformers!
Specifications:
Bandwidth: 0 – 100,000 Hz (+0/-1 dB)
Phase response error: <1° (0 - 20,000 Hz)
Gain: 30 dB max.
Minimum Power Output (1 - 20,000 Hz, 1 W = 0 dBW)
>2x 160 W into 8 ohm (22.0 dBW), THD <0.01%
>2x 280 W into 4 ohm (24.5 dBW), THD <0.01%
>2x 420 W into 2 ohm (26.2 dBW), THD <0.01%
Output voltage / current, max.: 36 V / 43 A
THD+N (IHF-A): <0.01% (@1 W into 8 ohm, 1 - 20,000 Hz)
IMD: <0.01% (@ 100 W into 8 ohm)
S/N ratio (IHF-A): >120 dB
Common Mode Rejection Ratio: >80 dB (@ 100 Hz)
Slew rate: >50 V/µs
Damping factor: >2000 (1 – 20,000 Hz)
INPUT XLR balanced / cinch WBT unbalanced:
Level, nominal: 1.25 V (1.9 dBV) / 1.25 V (1.9 dBV)
Impedance: 600 ohm / 20 kohm
Supply capacitance: 132,000 µF total
Power consumption: 1500 W max. (70 W standby)
Power transformer, primary: 230 VAC / 115 VAC
Secondary 1 & 2: 42.5 V / 7.1 A
Secondary 3 & 4: 15 V / 1 A
Decondary 5 & 6: 60 V / 0.1 A
Maximum DC-offset: +0.5 V and –0.5 V
Short circuit protection
Fuse per channel
Dimensions (h x w x d): 143 x 482 x 452 mm
Weight: 24 kg
