Latest DAC Technology
Tocata XM2 is the first ONIX model to implement the flagship Cirrus Logic CS4308P, a brand-new 8-channel DAC, providing a fully balanced circuit and representing a significant sound quality upgrade over the older Cirrus Logic chipsets. Supported by the in-house developed “Brighton” I/V conversion circuit and pair of SGM amplifiers, offering up to 800 mW @ 32 Ohm output power, while ensuring a low output impedance for even the most sensitive In-Ear Monitors.
Pure Music System
Highly focused and fast system, powered by the Ingenic X2000 platform and designed for the most demanding audiophiles. Avoiding the distractions of modern smartphones and simply offering the core music experience. Playing Hi-Res files from MicroSD card, streaming with Tidal or running over DLNA/Airplay, uninterrupted High-Fidelity sound is guaranteed.
Full Package from ONIX

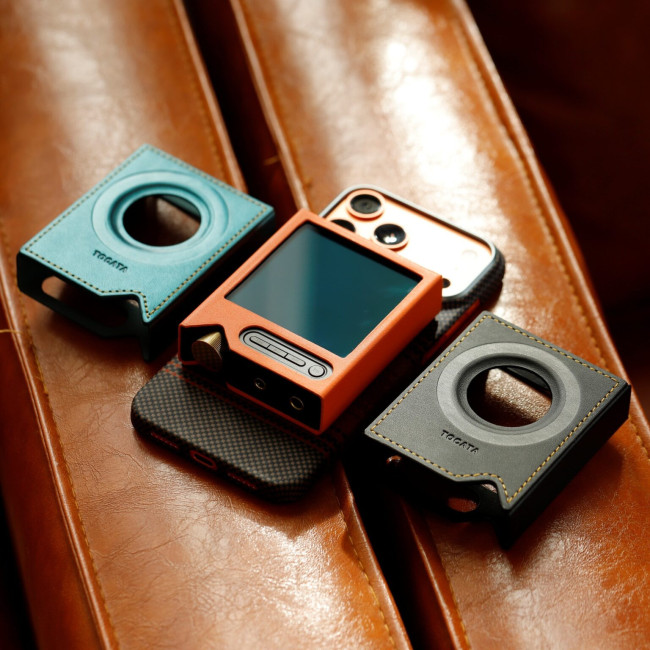

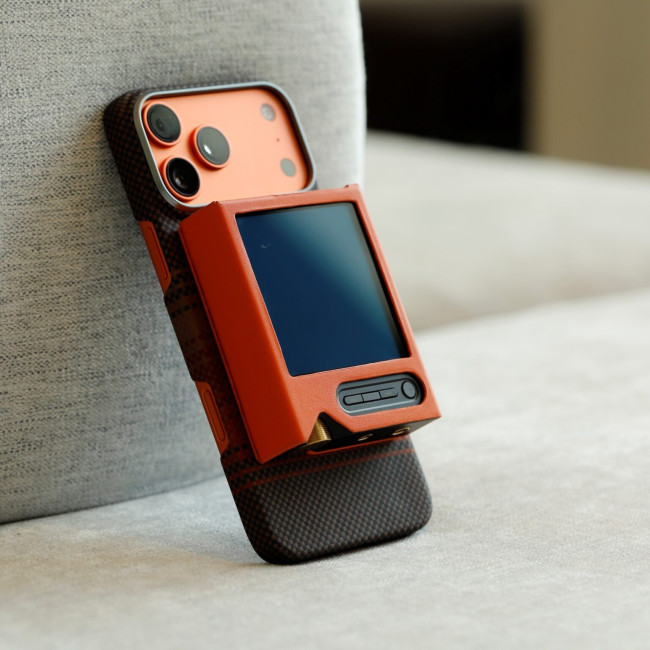

Durable and expertly crafted aluminium body hides all the extra features that can be expected from ONIX creations. Bi-Directional Bluetooth for on-the-go streaming from smartphones or for smooth connection to wireless headphones or speakers. USB digital output for feeding high-end external DACs. And USB DAC mode for use with computers and smartphones, now even more practical thanks to the new magnetic phone case!*
*Case sold separately.
Specification
Dimensions: 82 x 65 x 18 mm
Weight: 140g
System Platform: Ingenic X2000
System: In-House Developed

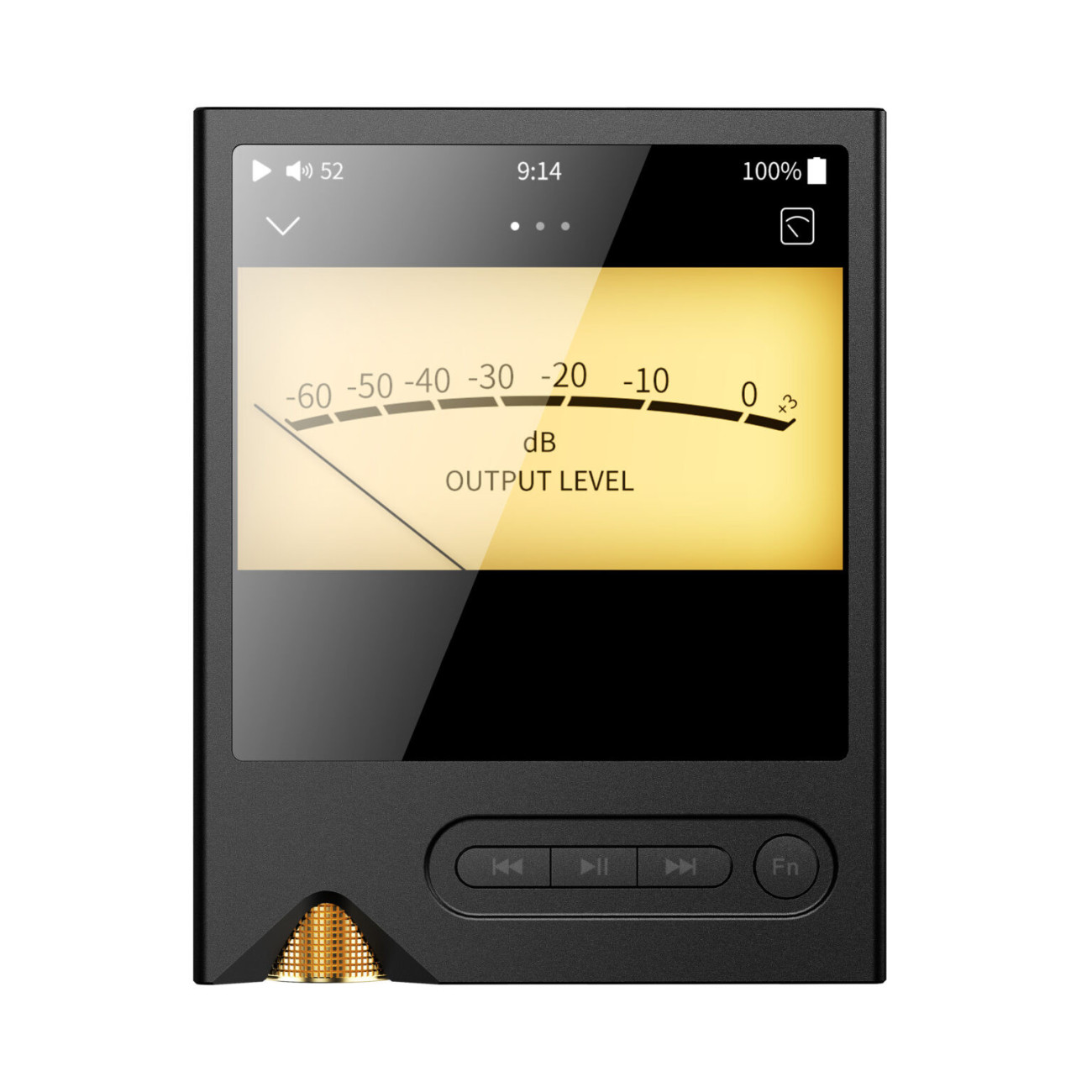

Display: Square 3-inch OLED Touch Screen 720p
Playback: MicroSD Card (up to 2TB), Tidal Online Streaming
Controls: Touch Screen, 4 Hardware Buttons, Volume Wheel
Remote Controls: SyncLink through Eddict Player app (Android & iOS)
Bluetooth Connectivity: Two-Way Bluetooth 5.2
Bluetooth Codec Support: LDAC / aptX HD / aptX / SBC / AAC
Wi-Fi Connectivity: 2.4G/5G, DLNA, AirPlay, Tidal
USB Features: USB DAC and USB Digital output
Hi-Res File Support: PCM 768kHz / 32bit, DSD512
Headphone Outputs: 3.5mm Single-Ended, 4.4mm Balanced
Battery: 3000 mAh, standard USB-C charging port
Battery life: Up to 8.5 hours SE or BAL
–
3.5mm Single-Ended Output
Output Power Low gain:
1.28V@32Ω (51mW@32Ω)
Output Power High gain:
2.56V@32Ω (204mW@32Ω)
Output Impedance: 0.4Ω
–
4.4mm Balanced Output
Output Power Low gain:
2.54V@32Ω (200mW@32Ω)
Output Power High gain:
5.08V@32Ω (800mW@32Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0005% @32Ω (A-Weight)
Channel Separation: 112dB
Signal-to-Noise Ratio : 121dB @32Ω (A-Weight)
Noise: 114dB @32Ω (A-Weight)
Output Impedance: 0.7Ω
