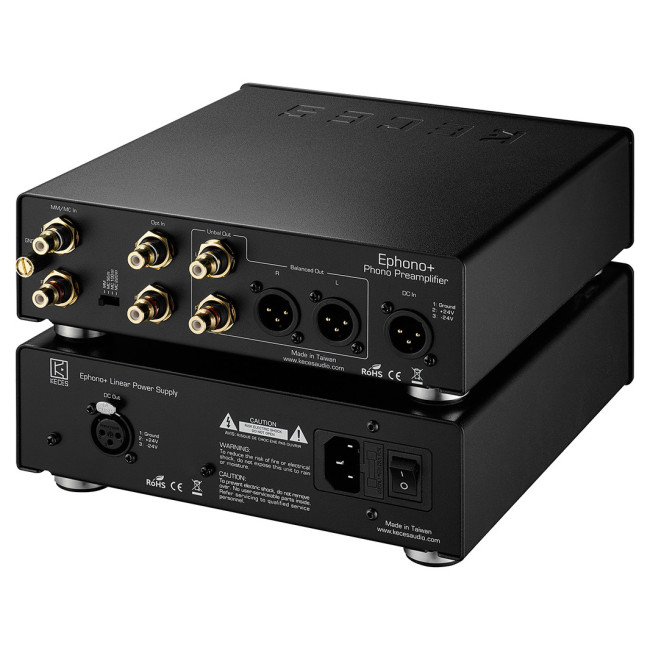

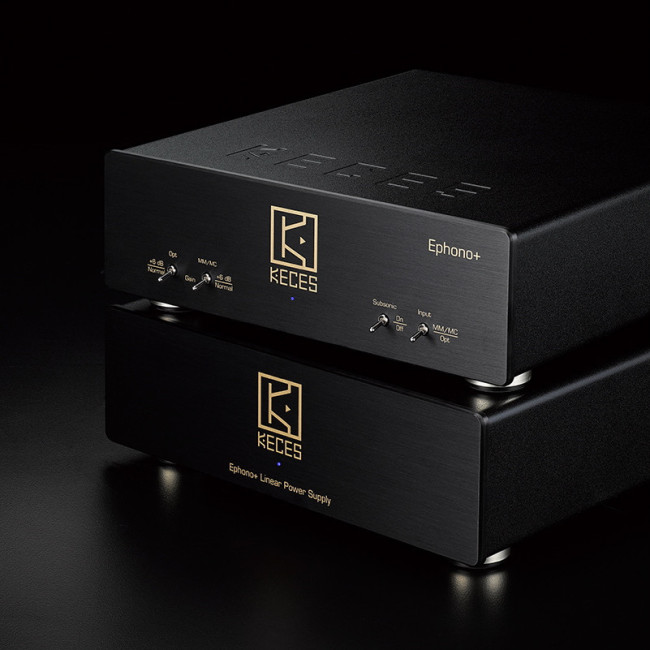

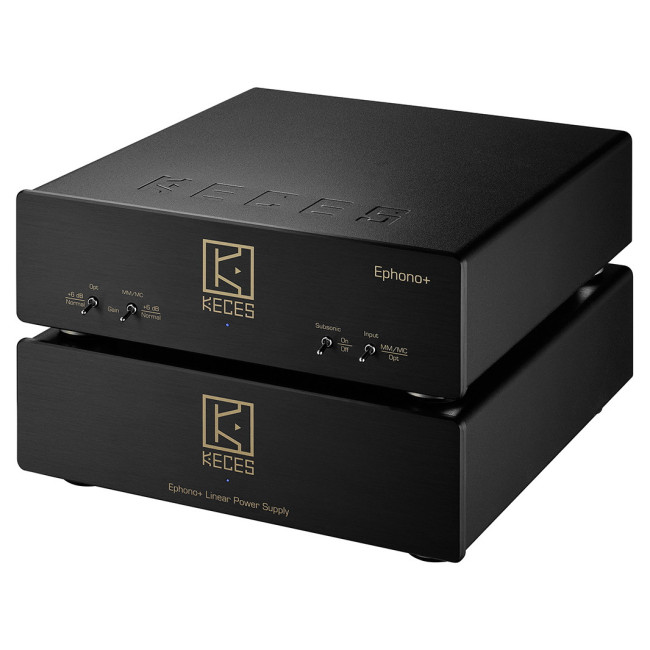

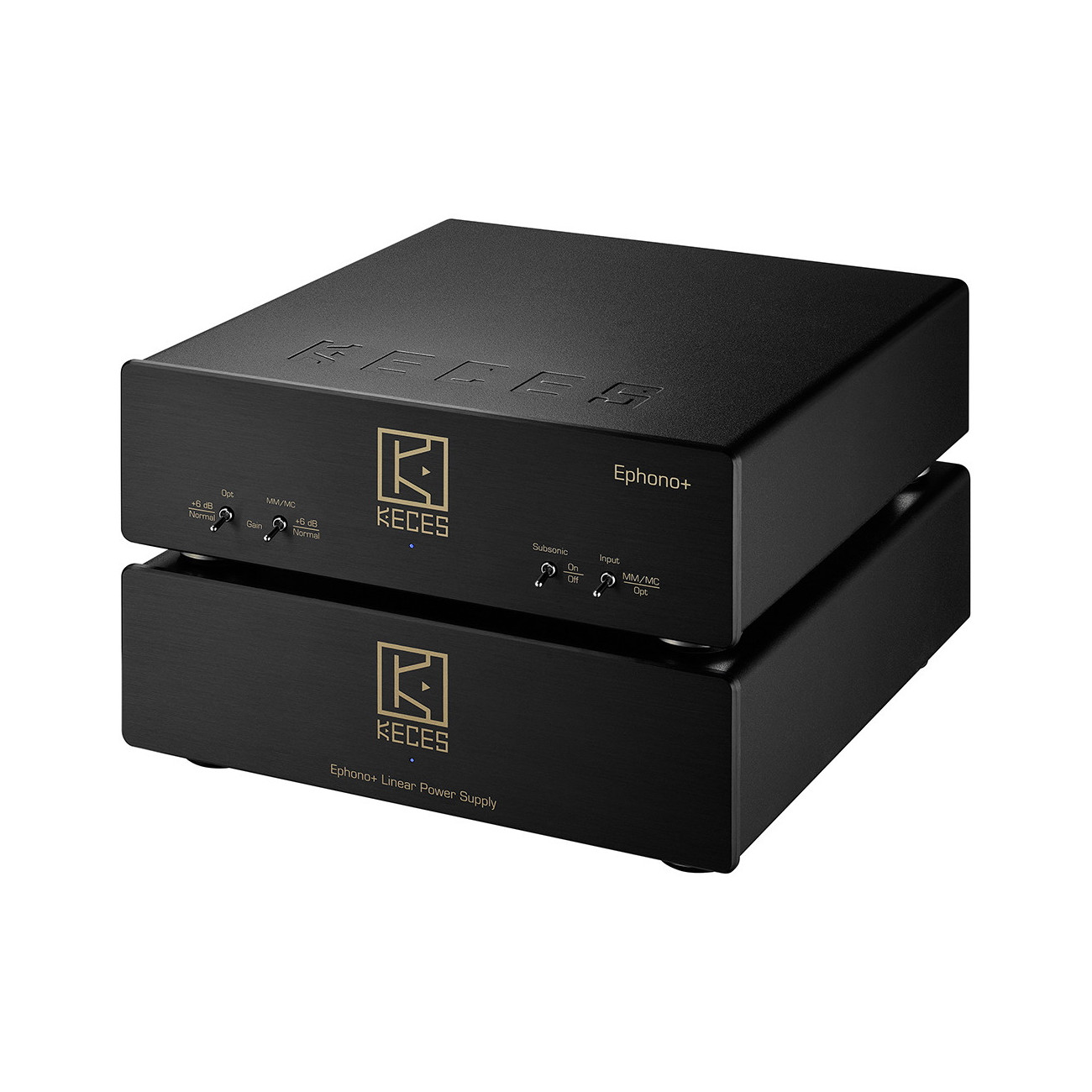

Ephono+ Preamplifier
Key Features:
Separated Power Supply Design
Isolated power architecture minimizes interference and enhances signal clarity.
Proprietary H-Sonic™ Toroidal Transformer
Developed and manufactured in-house by KECES, ensuring ultra-low noise and stable power delivery.
Versatile Cartridge Compatibility
Supports switchable MM / MC inputs, as well as dedicated input for DS Audio optical cartridges, meeting the needs of modern analog systems.

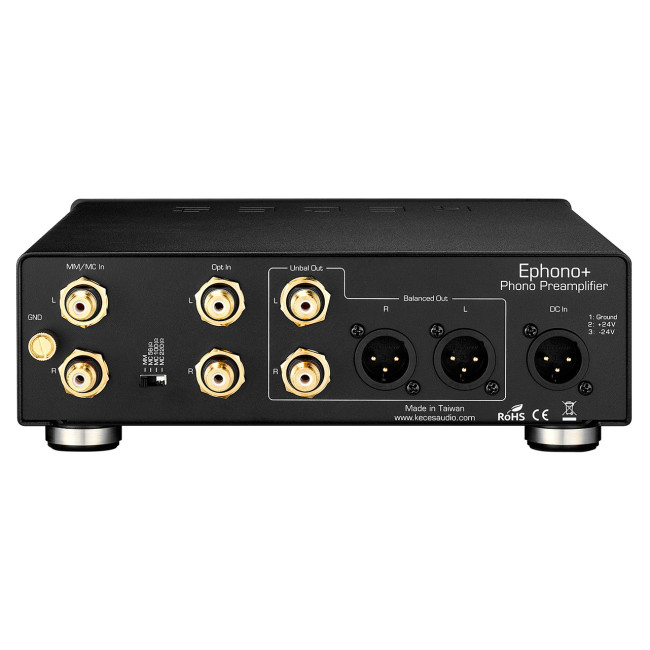

Balanced and Unbalanced Outputs
Offers both XLR and RCA output options for flexible system integration.
Premium Connector Configuration
Equipped with Neutrik locking XLR output connectors for secure and reliable connections.
Features 24K gold-plated RCA connectors for optimal conductivity and durability.
Adjustable Impedance and Gain Settings
MC Impedance: 56 / 100 / 220 ohms
MM Impedance: 47k ohm
※Gain Levels:
MM: 46dB / 52dB
MC: 66dB / 72dB
OPT (Optical): 24dB / 30dB

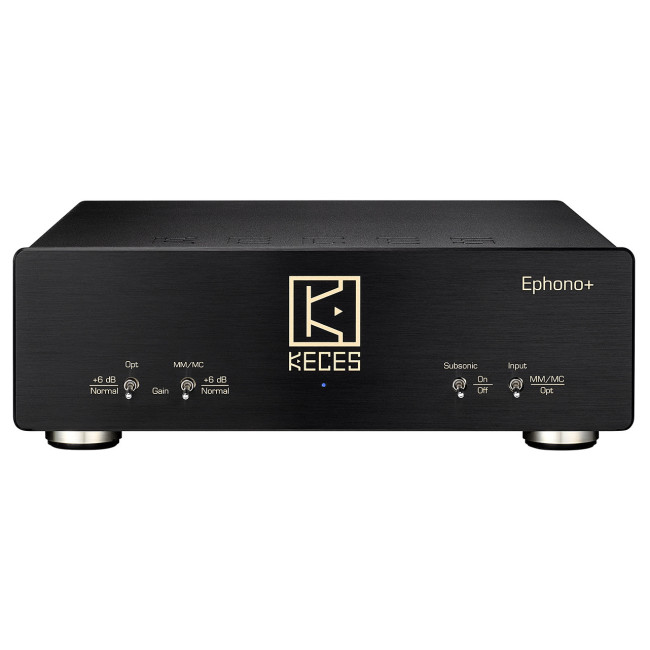

Subsonic Filter Toggle Function
Effectively removes ultra-low frequency noise caused by turntable vibrations or warped records, preventing unwanted energy from affecting amplifiers and speakers, and improving overall soundstage clarity.
Ultra-Low Noise Linear Power Supply with OTP Protection
Ensures stable operation and includes Over-Temperature Protection (OTP) for enhanced safety and reliability.
Ephono+ Specification
Frequency Response
20Hz-20kHz
THD
MM <0.02%, MC <0.05%, Optical <0.04%
S/N Ratio
MM 78dB, MC 70dB, Optical 75dB
Input Impedance
MM 47k ohm, MC 56/100/220 ohm
Input Capacitance
100pF
Gain
46dB/52dB for MM, 66dB/72dB for MC, 24dB/30dB for OPT
Power In
DC±24V (Power by Ephono Plus Power)
Dimension (WxDxH) 220x220x66mm
Weight 2KG

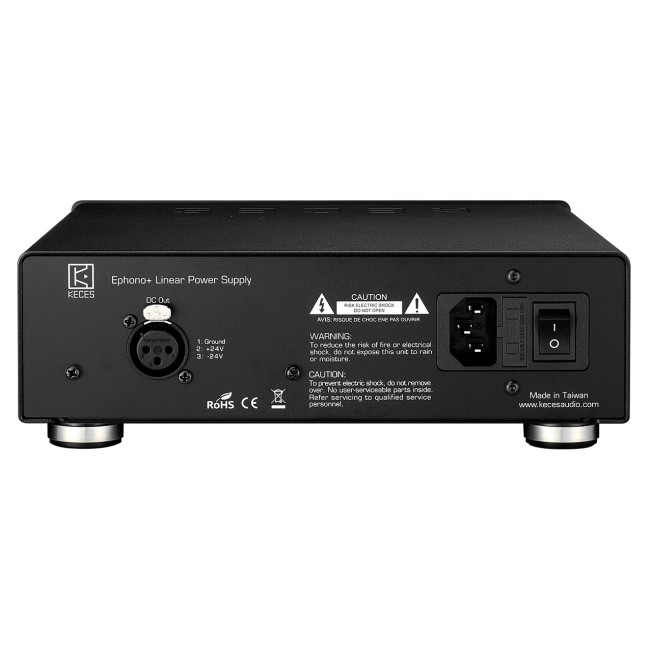

Ephono+ Power Specification
AC Input Voltage 110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)
DC Output Voltage ±24V
Power Consumption 36 Watts
Weight 3KG
