More Features
Separate Ground for Each Output Rail
Minimizes cross-interference between circuits, improving channel separation and sound layering.

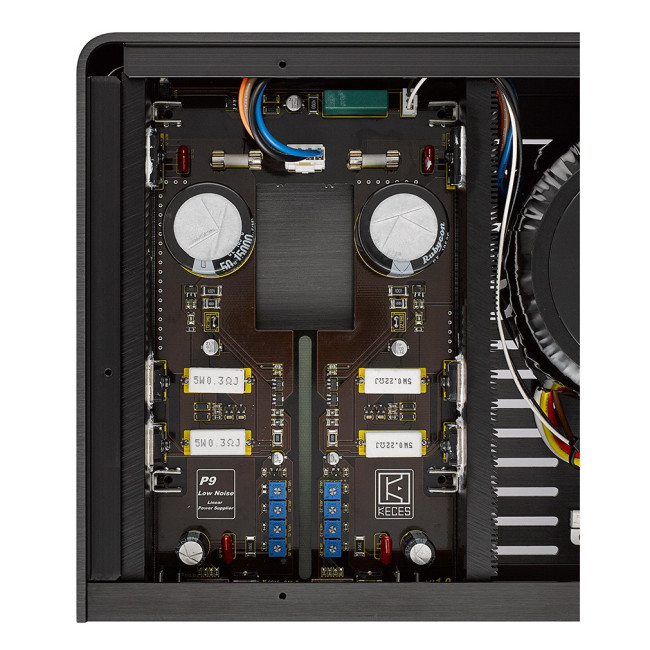

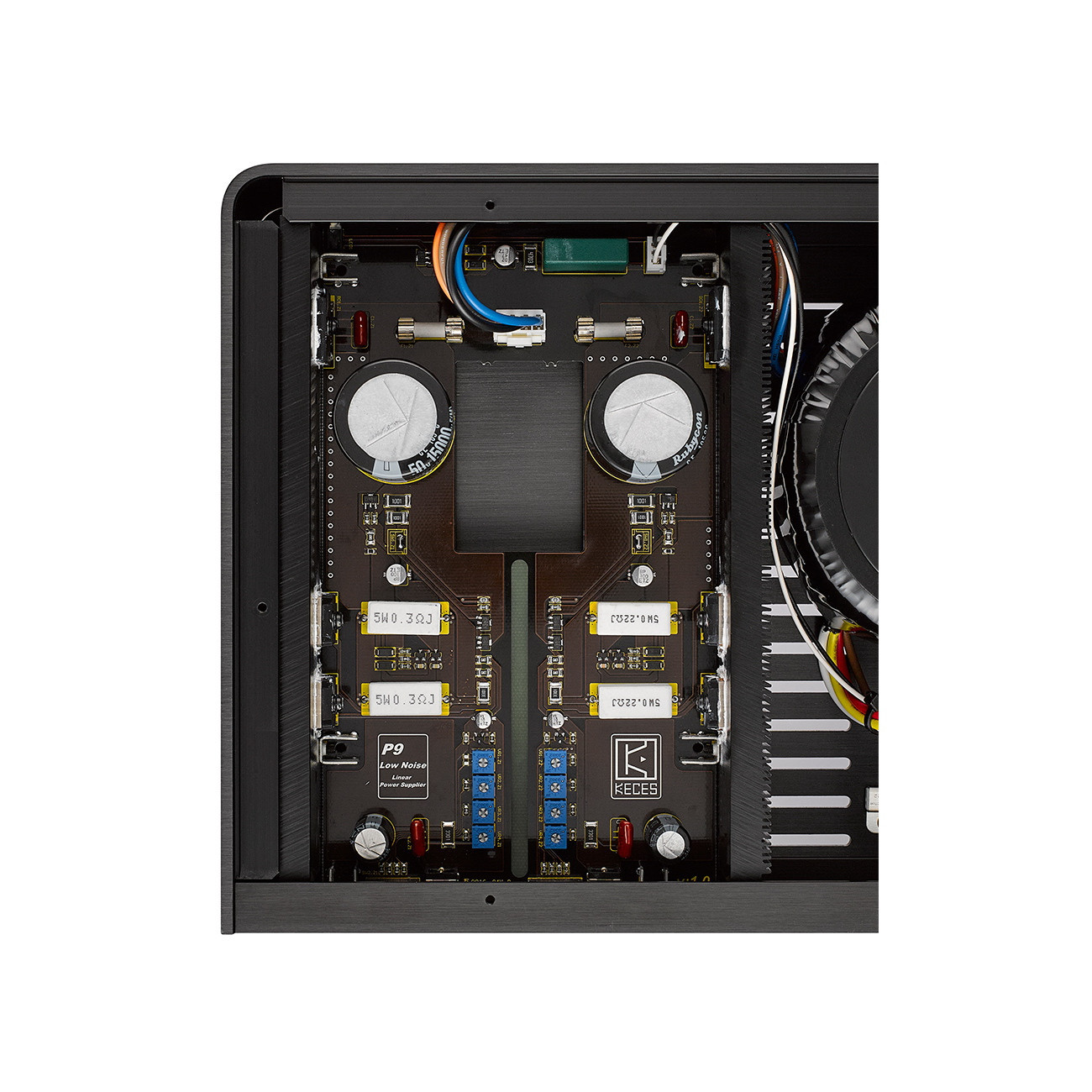

Fully Discrete Component Architecture Inspired by the P28
Built entirely with discrete components, this design prioritizes sound quality, delivering a more natural and refined tonal character.
Ultra-Low Ripple Noise Design
Ensures the audio signal remains free from power-related interference, resulting in a cleaner and more transparent soundstage.
Dual Output Design: 4A and 5A (Peak up to 7A)
Supports multiple devices with powerful and dynamic energy delivery.
Gold-Plated DC Jack
Reduces contact resistance and improves conductivity, resulting in more transparent sound and richer micro-details.
AC Inlet Module with OCC Silver Wiring & 2oz Copper PCB
Enhances current flow and transient response, delivering greater dynamic range and musical fullness.

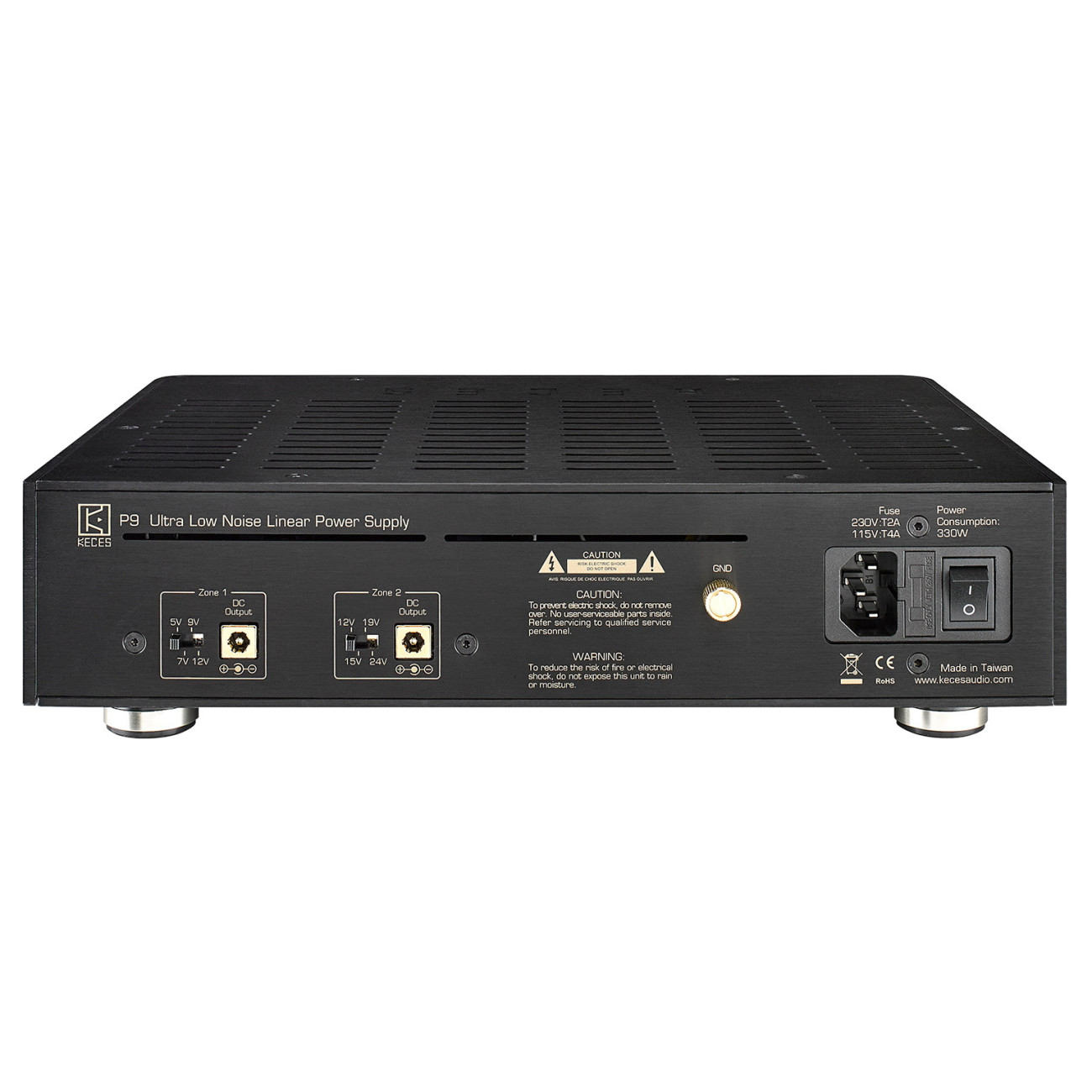

Ground Terminal Added
Offers advanced grounding options to reduce system noise and enhance soundstage stability and depth.
No Humming or Buzz at 50Hz and Peak Load
Maintains absolute silence even under heavy load, showcasing exceptional stability and reliability.
Over Temperature Protection (OTP)
Provides safety and ensures long-term stable operation.
Specifications
Output Voltage and Current
Zone I: 5V/7V/9V/12V, 4A (Peak to 5A).
Zone II: 12V/15V/19V/24V, 5A (Peak to 7A).
Ripple Noise
<220uV at full power
<150uV at 60 watts
Power Requirment
Maximum: 330 Watts
Casing
All Aluminum
Dimension (WxDxH)
300x220x66mm
Weight
Net Weight 6 KG
Shipping Weight 7 KG
