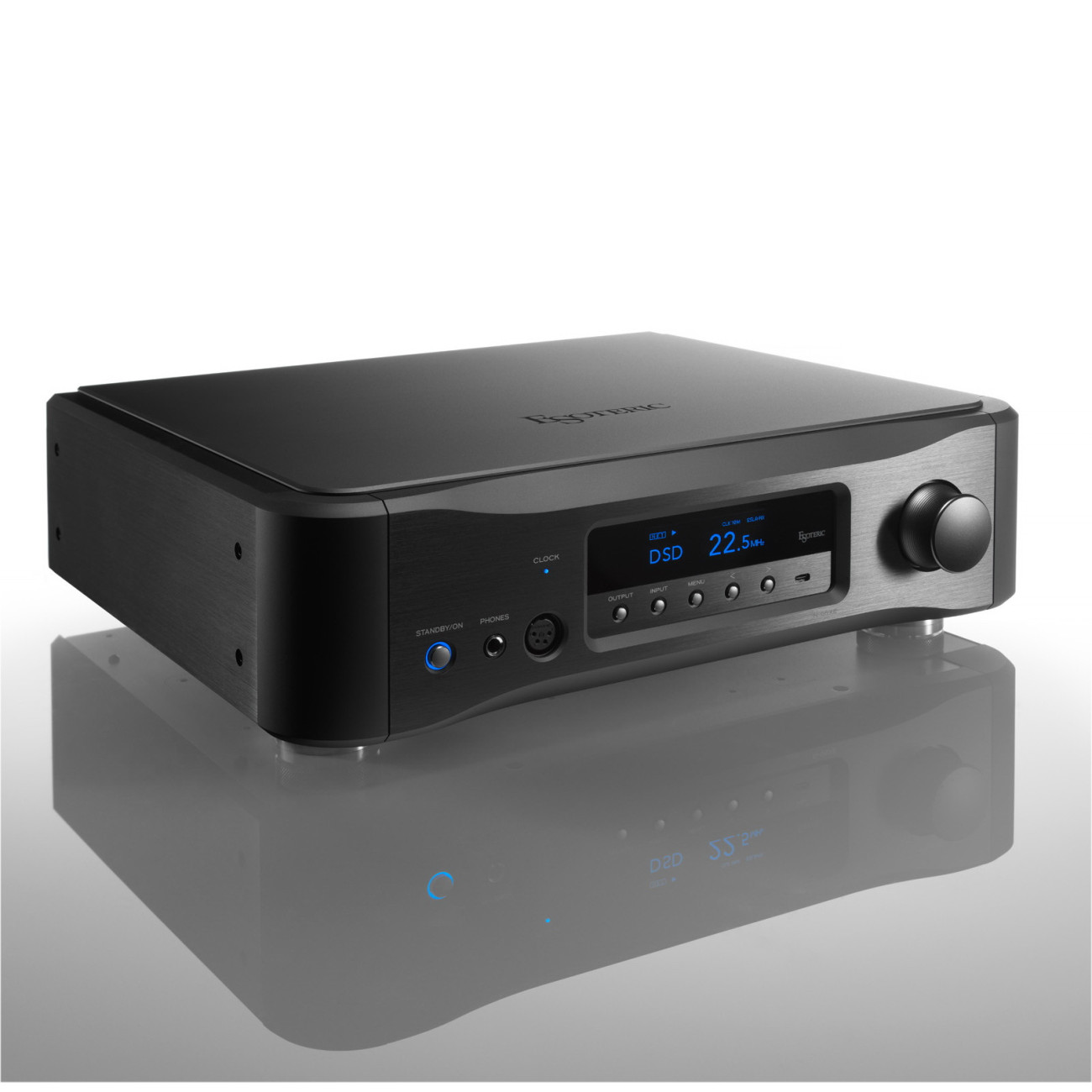

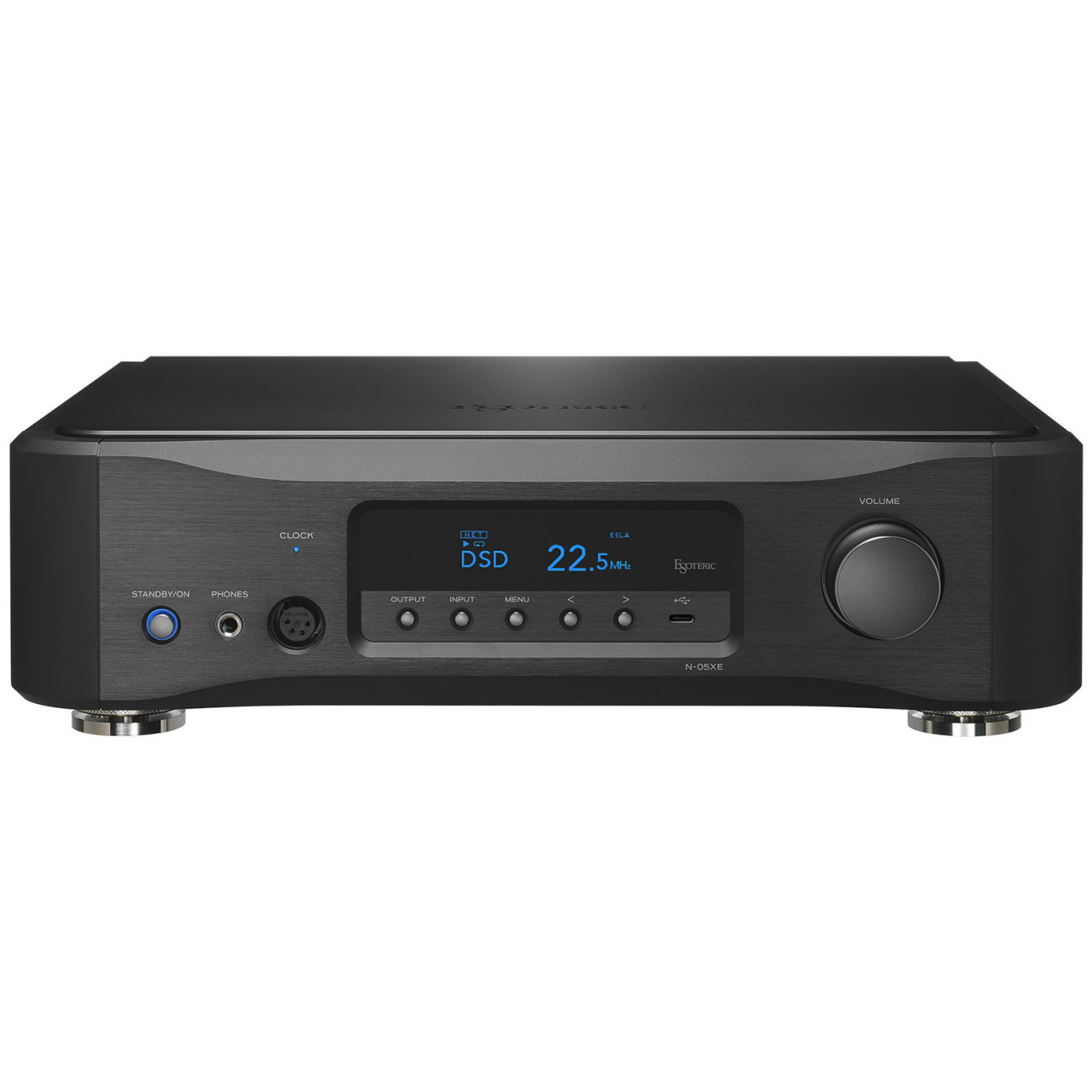

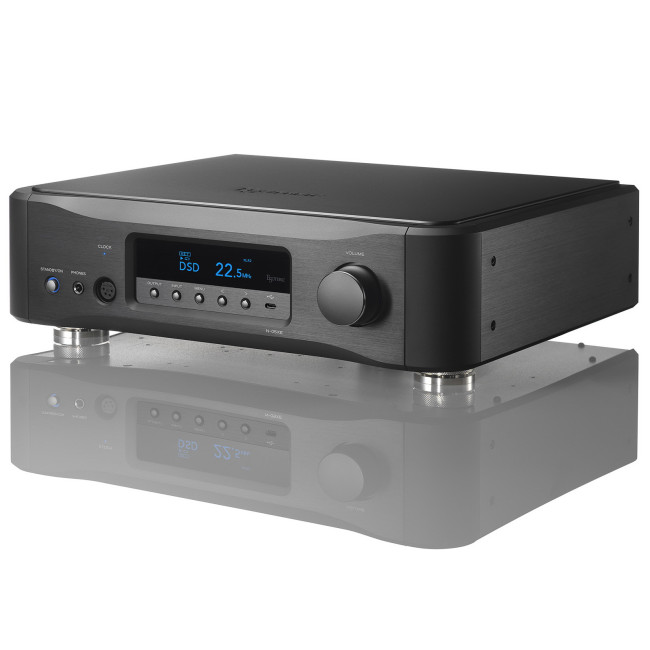

N-05XE Network DAC Preamplifier Black

– Minimal High End Style, Upgraded –

A network DAC preamplifier that encapsulates the essence of Esoteric

Welcome to the first-class of music listening.

Condensing the appeal of an ultra-high-end system, this minimal and versatile, best-selling Esoteric system has evolved into the "XE" model, offering even richer musicality. With the Network DAC Preamplifier N-05XE and Class A Power Amplifier S-05XE, all that remains is to choose the perfect speakers for your system.The N-05XE network DAC preamplifier

features next-generation discrete DAC

and network engine technologies for even higher sound quality.

Designed to deliver the highest sound quality in the smallest possible system configuration, the N-05XE features an optical network-compatible G4 network engine and a next-generation G2 discrete DAC. It also has a dual balanced preamplifier derived directly from the Grandioso models along with a high-quality built-in headphone amplifier.

The "XE" model retains its acclaimed functionality while meticulously refining every circuit component through a newly optimized design. Enjoy the refined Esoteric signature sound to your heart's content.

N-05XE System Configuration

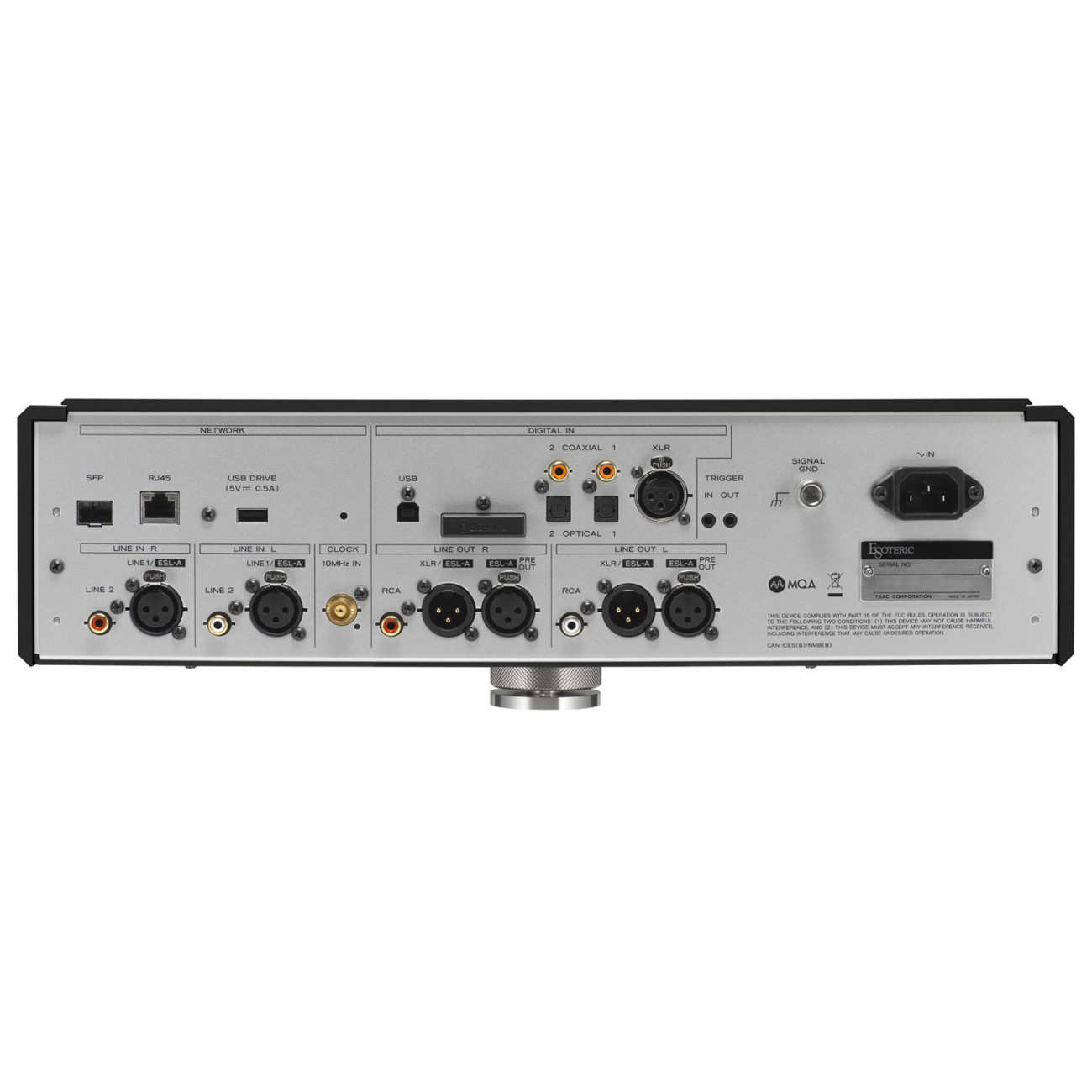

• D/A Converter: Equipped with a wide range of digital inputs
• Network Streamer: Designed for streaming and music file playback
• Dual-Mono, Dual Balanced Preamplifier
• Dual-Mono, Parallel Single-Ended Headphone Amplifier

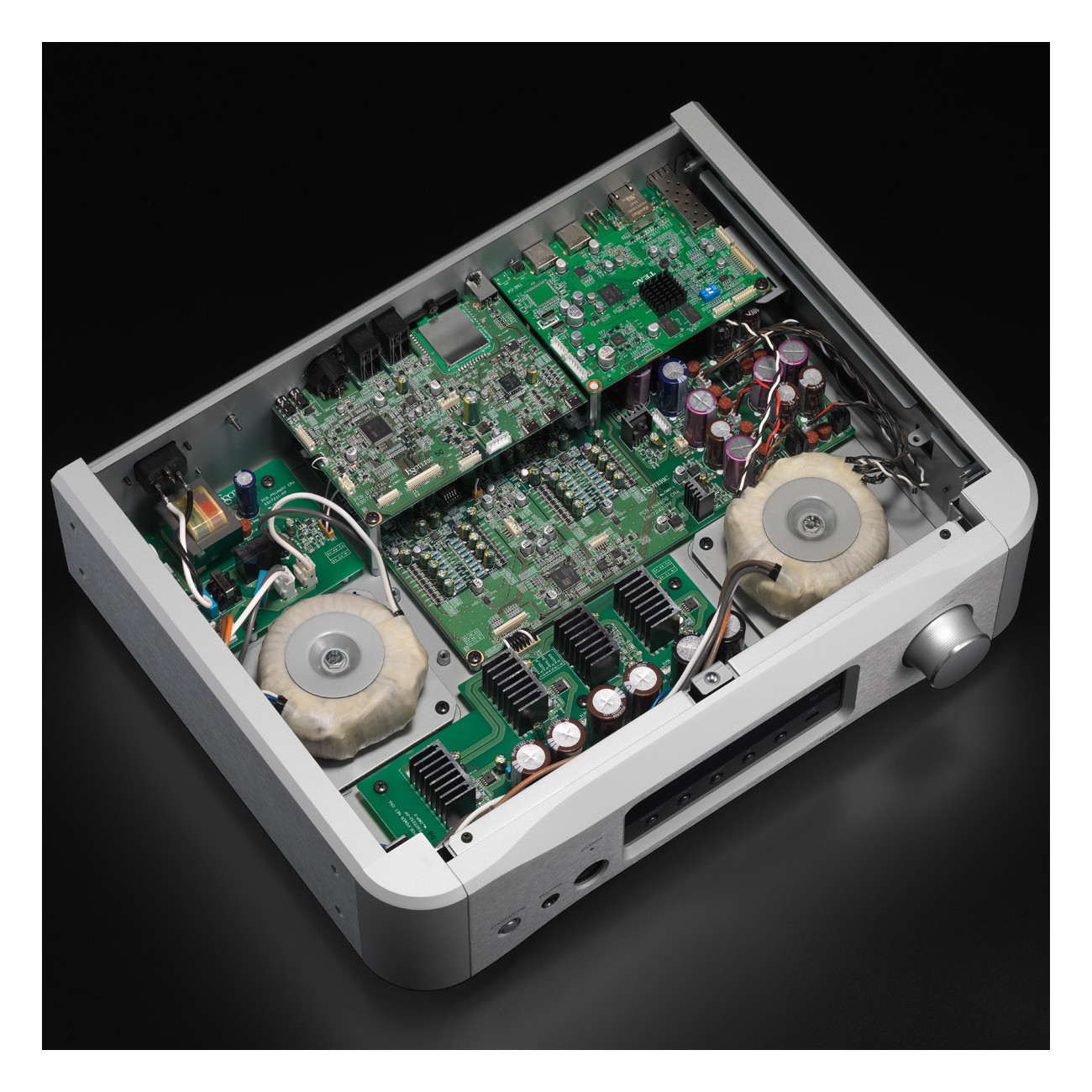

• Fully Dual-Mono Construction: All analog and power supply circuits are completely L/R independent

Master Sound Discrete DAC G2

• Next Generation “G2” DAC: With richer musicality, incorporating the Grandioso N1 technologies N-05XE
• Highly Advanced Multilevel ΔΣ D/A Converter: Powered by 64-bit/512Fs ΔΣ modulator
• FPGA-Based Discrete Circuit Configuration: Without using an off-the-shelf DAC IC
• Two Independent FPGA Digital Processing Algorithms: Optimized separately for PCM and DSD formats
• Low-Noise New Register Network: Provides cleaner imaging and lower noise N-05XE
• High Precision MELF Resistor Elements: Ensures ultra-high D to A conversion accuracy
• Fully Dual-Mono Configuration: Left/right independent analog and power supply circuits
• “Master Sound Discrete Clock for Digital Player”: Esoteric’s proprietary high-precision clock circuit N-05XE

ESOTERIC Network Engine G4

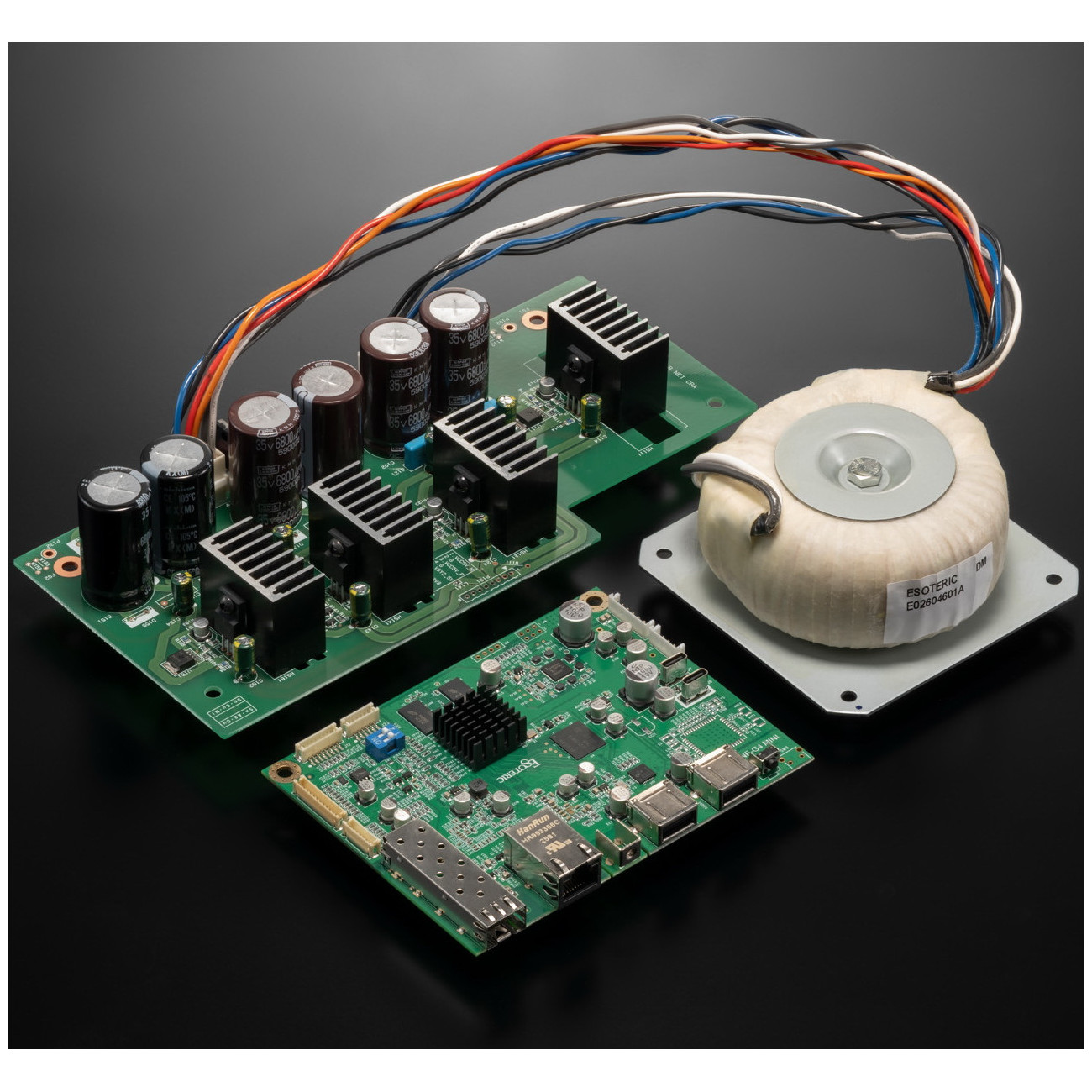

• Next Generation Network Streaming Engine: Supports optical network connections via SFP port N-05XE
• Dedicated Large Linear Power Supply: Contributes to smooth, vinyl-like, and richly detailed sound
• Native DSD 22.5 MHz Playback Support
• Music Server Function: Supports connection of up to two USB drives
• Wide Range of Supported File Formats: DSF, DSDIFF, FLAC, ALAC, WAV, AIFF, MQA, MP3, AAC
• Esoteric Sound Stream App: Provides extremely comfortable operation on smartphone/tablet
• OpenHome Compliant: Can be controlled using compatible OpenHome applications
• Support for Multiple Streaming Services: Tidal Connect, Qobuz Connect, Roon, Spotify Connect, QQ Music

Dual-Mono, Dual Balanced Preamplifier

• High-Fidelity Dual-Mono, Dual Balanced Circuit: Consists of 8 circuits (L/R, hot/cold independent)
• Dedicated Attenuator Power Supply: Contributes to pure volume control N-05XE
• HCLD High-Current Buffer Amplifier: Powerfully drives downstream equipment with no sound quality difference regardless of preamp output, line output, or headphone output
• ES-Link Analog: Esoteric’s proprietary current signal link with amplifier, provides super authentic sound
• ES-Link Analog input ×1 N-05XE

Dual-Mono, Parallel Single-Ended Headphone Amplifier

• Completely New Circuit Design: Developed for even higher sound quality N-05XE
• Dual-Mono Parallel Single-Ended Amplification: Provides excellent drive capability and control N-05XE
• 1,200 mW + 1,200 mW Output (32 Ω Load)
• 4-Pin XLR and ¼ (6.3mm) Stereo Phone Headphone Outputs

Other Features

• Front USB Type-C Port: Functions as a DAC input for smartphones and DAPs N-05XE
• ES-Link (XLR) Input: Provides digital connectivity to Esoteric SACD transport models
• 10 MHz Clock Input: Enables connection to the G-05 external master clock for further sound quality enhancement
• Bluetooth® Receiver: Supports various high definition codecs; LDAC, LHDC, Qualcomm®aptX ™ HD audio, Qualcomm®aptX ™ audio, AAC, SBC
• Fixed Line Output Mode / Signal Pass-Through Output Mode
• High-Rigidity Chassis Construction: Optimized for effective vibration control
• Semi-Floating Top Panel: Enhances sonic openness and spatial expression
• Patented Pinpoint Isolation Feet: Deliver focused imaging and an open soundstage
• Proudly Made in Tokyo

N-05XE: New features of the N-05XE

Dual Balanced Preamplifier, Parallel Single-Ended Headphone Amplifier

The Dual-Mono, Dual Balanced Preamplifier at the Heart of the System

The preamplifier forms the core of the system and defines the essence of its sound. The Grandioso's high fidelity and musical expression embody Esoteric's philosophy and technology. These qualities have been passed down to the N-05XE, which inherits its lineage. The acclaimed dual mono, dual balanced configuration delivers dynamic yet delicate sound, capturing the performer's sensibility.

A Total of 8 Circuits for L/R, Hot/Cold

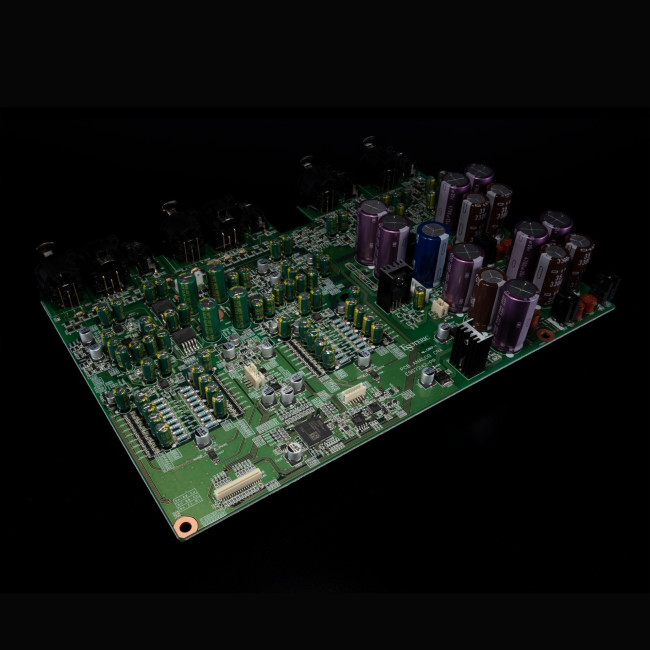

The N-05XE uses an attenuator circuit with a high-fidelity, dual-mono, dual-balanced configuration. This configuration comprises eight independent circuits that separately handle left and right channels, as well as positive and negative signal paths. This configuration achieves clear sound quality with excellent channel separation and phase accuracy. In the XE model, the attenuator's power supply section is completely independent from the other power circuits, which further refines the purity of reproduction.

High-Precision Ball Bearing Volume Control Knob

Providing ultra-smooth analog operating feel, the N-05XE’s volume control utilizes the same Ball-Bearing support mechanism used in Esoteric’s flagship Grandioso line. The volume knob itself is precision-machined from solid aluminum, ensuring exceptional tactile quality and mechanical precision.

Unique Esoteric-HCLD Output Buffer Circuitry

The N-05XE’s Esoteric-HCLD (High Current Line Driver) circuit was developed in pursuit of ultimate current transmission capacity and speed, two factors that are critical to achieving uncompromised analog output performance. The buffer’s high-speed element features an exceptional slew rate, or response speed, of 2,000 V/μs, enabling the reproduction of musical dynamics with breathtaking realism.

ES-Link Analog – Esoteric's Proprietary Current Signal Transmission Technology

The N-05XE features Esoteric's "ES-Link Analog" input/output transmission method. This method leverages the high performance of the HCLD buffer circuit, which is renowned for its powerful current supply capability. ES-Link Analog minimizes the influence of signal path impedance, enabling pure, powerful signal transmission and playback brimming with realism, as if you were directly monitoring from an analog console in a recording studio.

In the XE model, a newly added ES-Link Analog input allows direct connection to compatible Esoteric components such as the K-05XD, an integrated Super Audio CD player with DAC functionality and the E-02, a dedicated high-performance phono preamplifier.

Dual-Mono Parallel Single-Ended Headphone Amplifier

Experience high-end headphone listening in your own space. The N-05XE features a newly developed dual-mono, parallel single-ended headphone amplifier. Esoteric’s accumulated expertise in analog amplifier design is brought together in this circuit, delivering exceptional sound quality for serious headphone listening.

Evolved for an Even More Open Sound

The circuit is engineered to eliminate differences in sound quality between speaker and headphone playback. This is achieved by employing the HCLD line-stage preamplifier renowned for its high current output, as the headphone amplifier itself. The dual-mono architecture incorporates independent left and right power supply circuits.

During headphone operation, the two amplifier circuits switch to parallel single-ended operation, resulting in sound with even greater openness than previous models. The amplifier is equipped with two output formats: a 4-Pin XLR and a ¼ (6.3mm) stereo phone headphone output. With a high output power of 1,200 mW per channel (32 Ω load), it drives high-end headphones with ample authority, control, and musical vitality, delivering uncompromising performance and heightened musical expressiveness.

The Ultimate Versatility. Flexible for a Wide Range of Uses

The N-05XE is a highly versatile high-end component that has been meticulously finished without any compromise, providing top-tier audio performance, across a wide range of applications. When switched to fixed line level output, the N-05XD can be connected to an external preamp for operation as a standalone digital source or DAC. It also has a convenient pass through output for use as a front-channel speaker preamp for an AV receiver. The XE model can additionally function as a DAC input, allowing direct connection of smartphones and DAPs.

SACD Transport Connectivity

The N-05XE is equipped with Esoteric’s proprietary ES-Link digital input, enabling direct connection to Esoteric Super Audio CD transport models via a single XLR cable.

Built-in Bluetooth® Receiver

The N-05XE features a built-in Bluetooth® receiver supporting high-quality audio codecs, including LDAC, LHDC, Qualcomm® aptX™ HD audio, Qualcomm® aptX™ audio, AAC and SBC. This enables high-fidelity wireless playback from smartphones and other compatible devices. The N-05XE also supports multipoint connectivity, allowing simultaneous connection to multiple devices for seamless switching.

Clock Sync Function

The N-05XE is equipped with a high-precision 10 MHz master clock input. When used in combination with the external G-05 master clock generator, it enables further enhancement of overall sound quality.

Chassis Construction that Combines Rigidity and Flexibility for Resonance Control

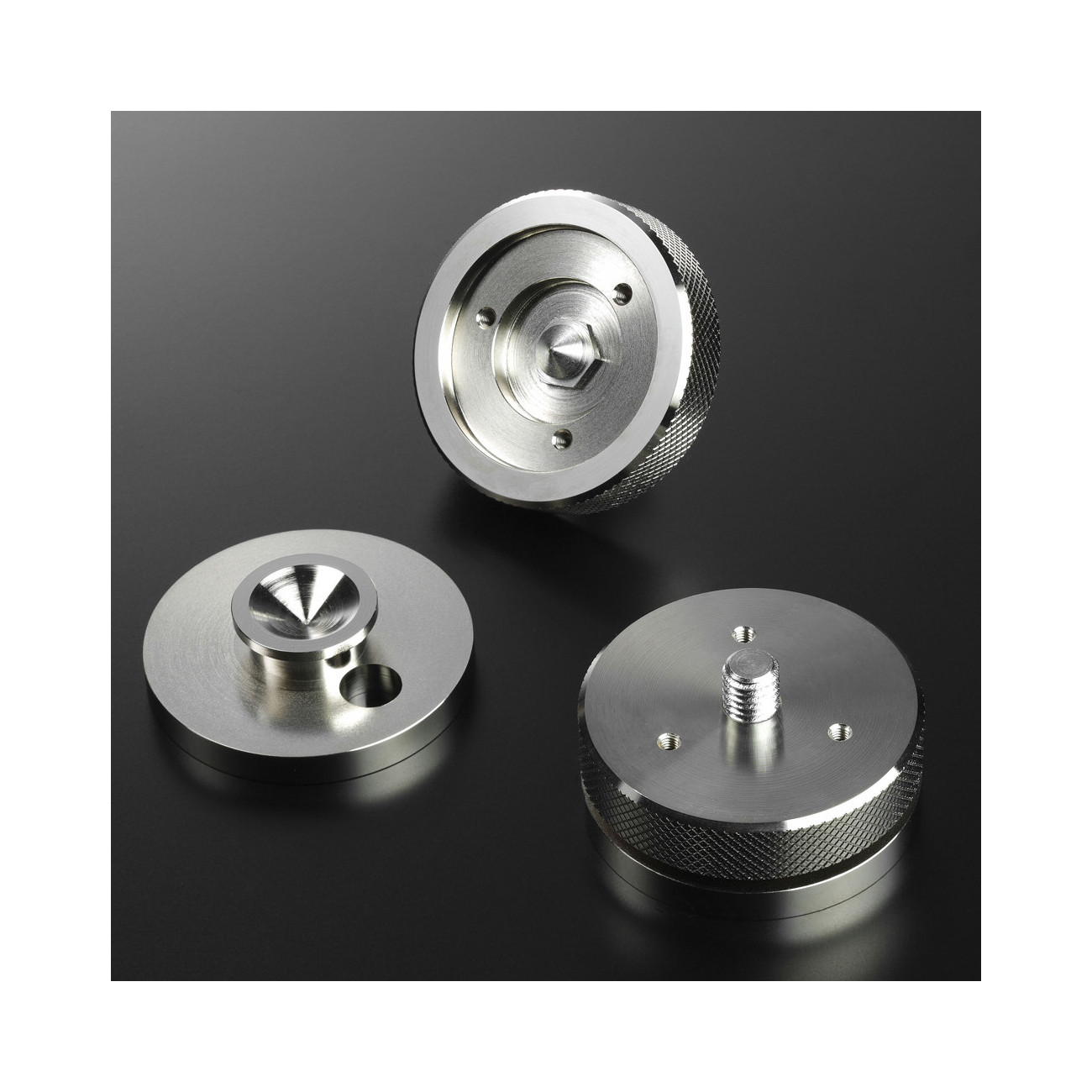

The N-05XE features a semi-floating top panel that contributes to an open and spacious sound. The bottom chassis incorporates precision laser-cut slits around the power transformer mount for effective resonance control. Unwanted vibrations are efficiently dissipated externally through Esoteric’s patented Pinpoint isolation feet (patent nos. JP 4075477, JP 3778108, and JP 7413773).

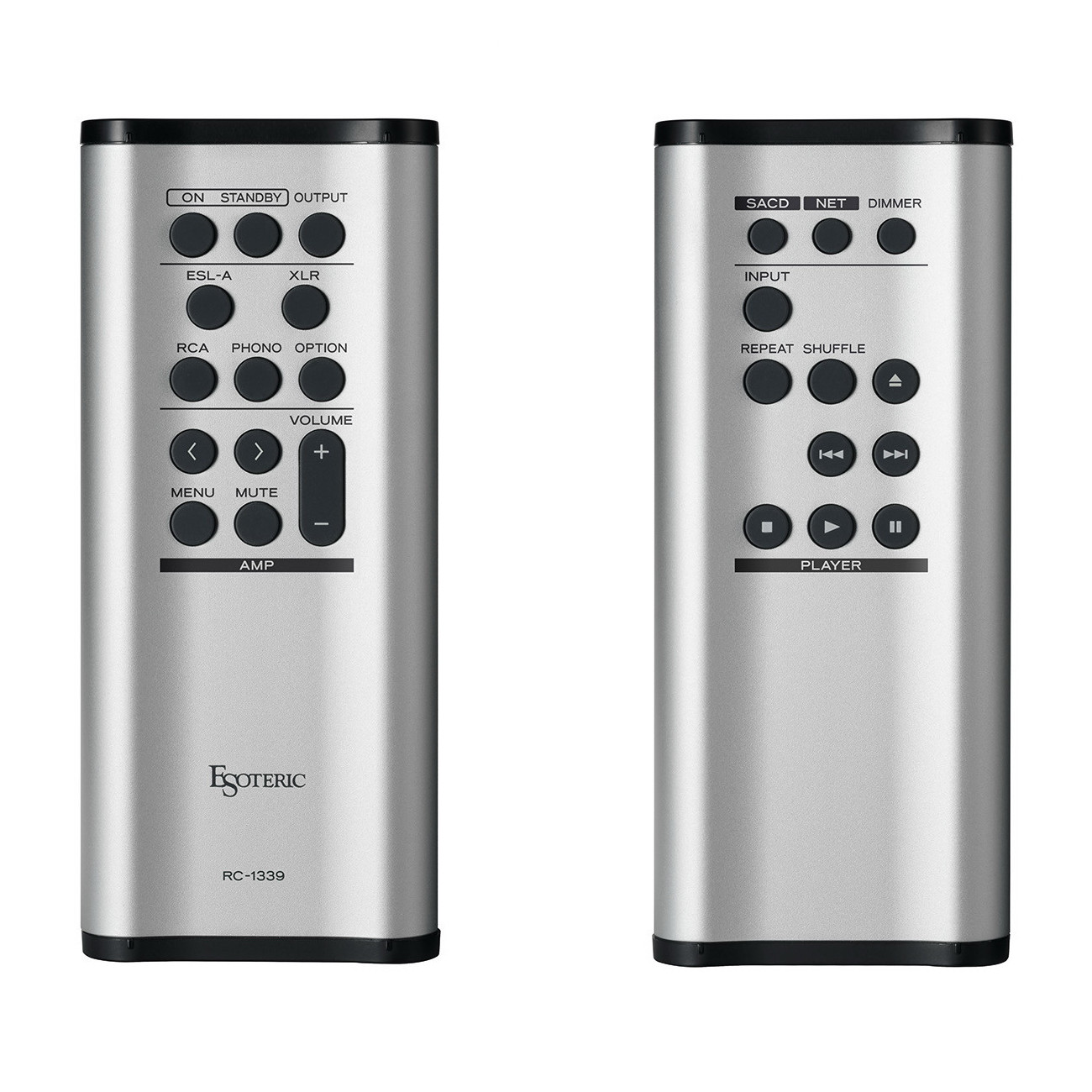

Remote Controller with Easy-Operation Buttons on Both Sides

The RC-1339 remote controller features an ergonomically designed aluminum body that fits naturally in the hand, with buttons positioned on both sides of the unit for intuitive and effortless operation from the comfort of the listening position.

In addition to providing straightforward control of preamplifier functions and network playback, this remote controller can also be used to operate compatible Esoteric Super Audio CD players and transports.
