play anything, anywhere.
OD-11 is compatible with all music and connectivity
services, including AirPlay 2, for multiroom and stereo pairing.
stream your favorite music at home, bring it on your holiday and
listen offline in cabin mode. connect any instrument, turntable,
gaming console or tv, for a rich sound experience.
warm and natural sound in a timeless design.

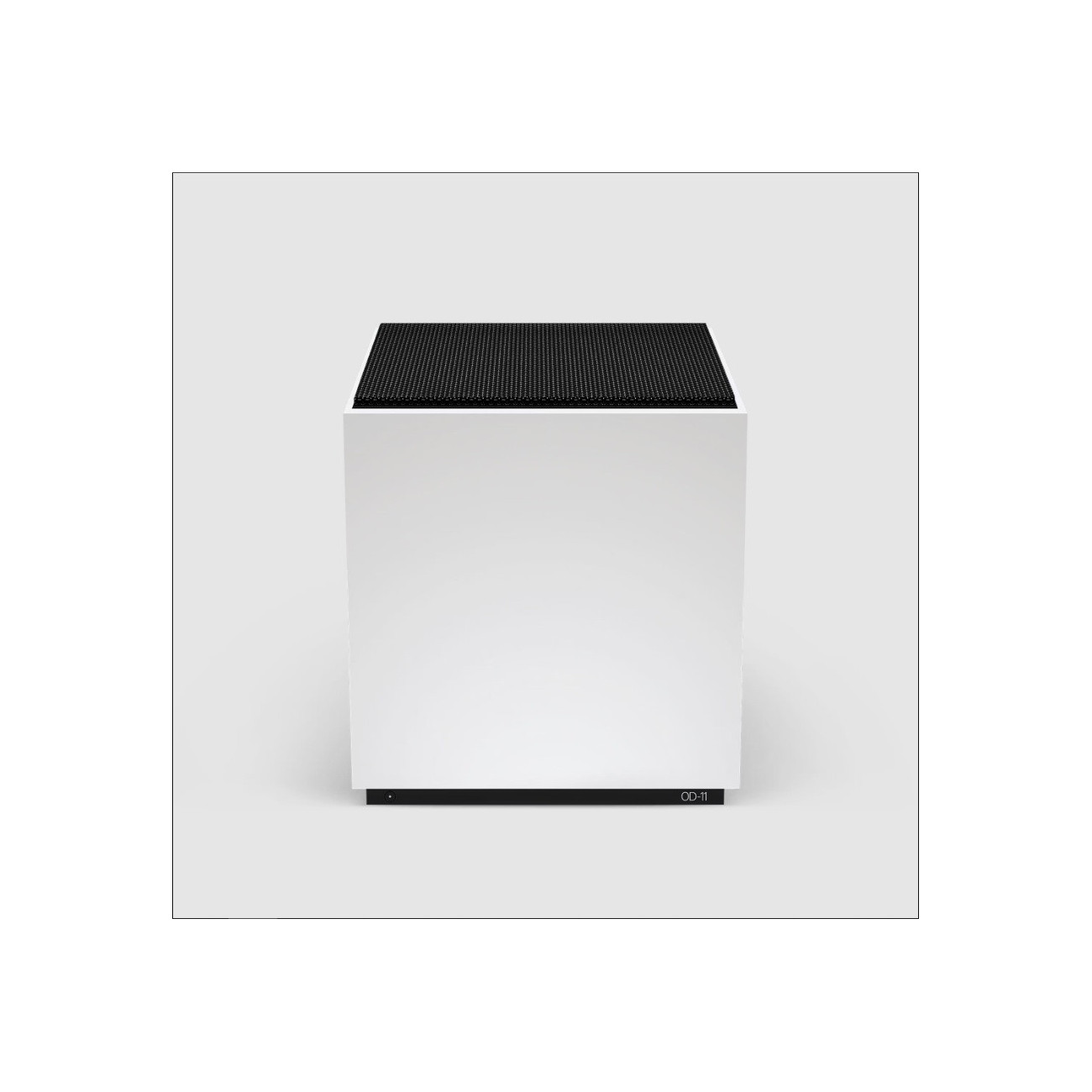

the new OD-11 is a carefully re-engineered version of the
original OD-11 ortho directional loudspeaker, made in 1974 by the
swedish sound genius stig carlsson. the carlsson sound has returned,
now upgraded using the latest technology.
the latest technology at heart.
OD-11 features a 100 watt amplifier and a built-in computer.
it delivers warm powerful sound using the latest wi-fi streaming technology,
and will play all your music from any device. setup is simple and within minutes you will be enjoying streamed music.
technical
specs
speaker principle
ortho directional flow optimized bass
reflex duct
supported configuration
AirPlay 2
spotify connect
bluetooth audio
frequency range
28 – 20.000 Hz (-3dB)
dimensions
262 x 272 x 262 mm
10.3 x 10.7 x 10.3 in
weight
7.5 kg
16.53 lb
materials
high density fiber board
reinforced plastic
woven steel mesh
design features
single design for left/right placement
interface
plus / minus button
function button
rgb led
stereo selector switch
configuration
mono 1 + 1
tweeter
high efficiency ferrofluid cooled neodymium cone tweeter.
woofer
long throw pulp cone 6.5" woofer with
magnetic short circuiting ring.
amplifier
100 W ultra high efficiency class D
wireless technology
beam forming wi-fi technology
Bluetooth® classic (AAC)
Bluetooth® 4 LE
inputs
3.5 mm stereo audio in
pcm optical in
general power requirements
AC 100-240 V 50/60 Hz
universal built-in power supply
included accessories:
mains power cable
compatible add-ons:
ortho remote
product name
OD–11
HARM code
8518220000
