TOT MAX CE
    Torus Power

    TOT MAX CE

    Reference:
    €3,500.00
    Tax included

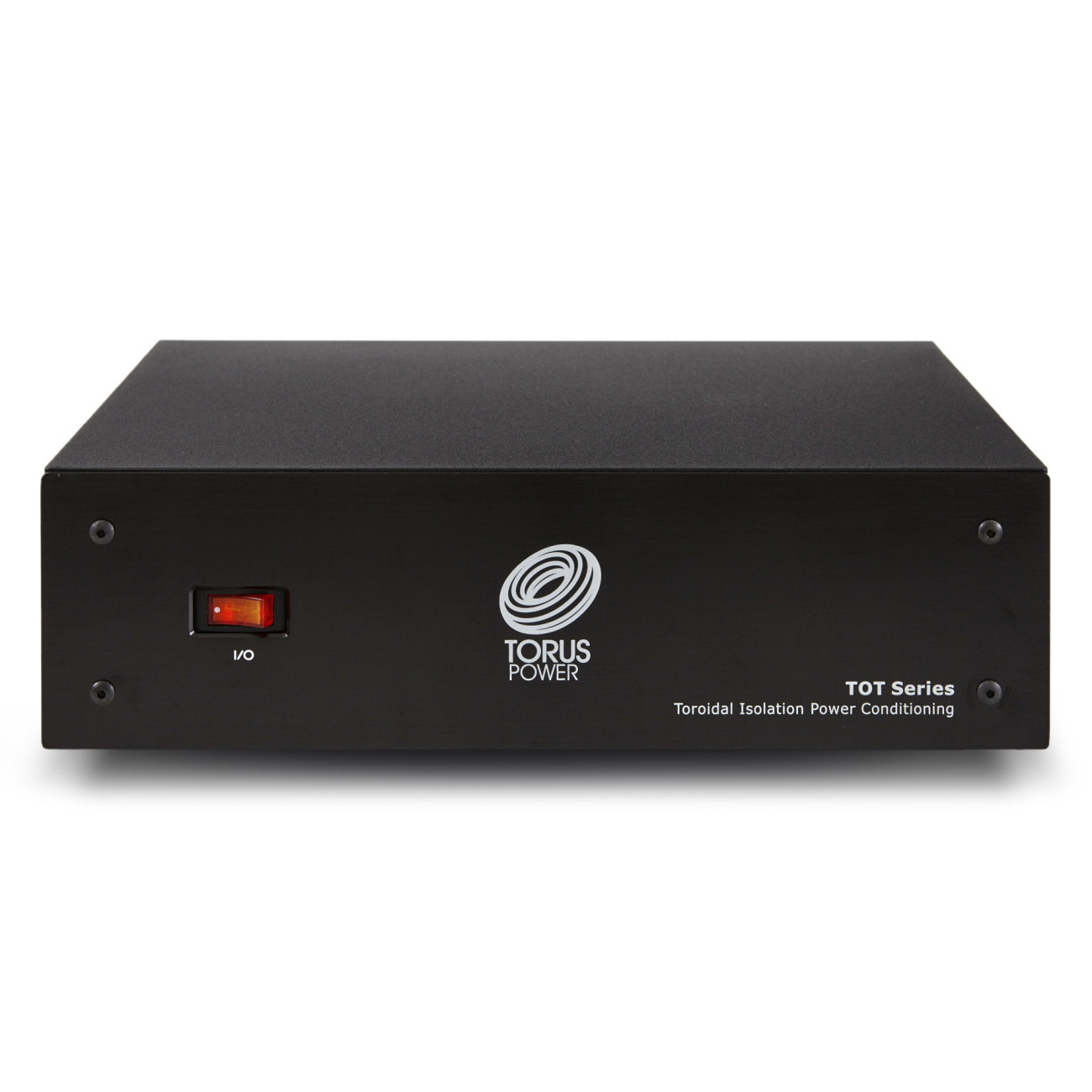

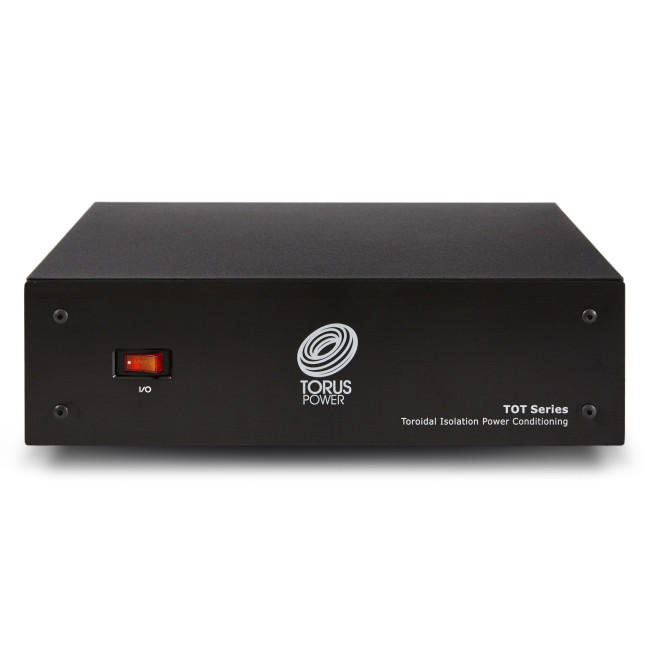

    TOT Max



    Toroidal Isolation & Noise Filtering



    Description



    Torus Power’s “TOT” Series consists of compact models that bring toroidal power conditioning to a new price point, affordable for most applications and packed with features, the TOT Series is an easy choice to improve performance of all audio and video systems.



    The TOT MAX, rated at 8 Amps, can provide current to demanding power hungry systems including substantial power amplifiers.



    All TOT models feature a courtesy USB charger outlet. Options include a dress aluminum faceplate (Black or Silver) and a 19″ rack mount adapter kit. TOT units include circuit protection through a replaceable varistor. Torus Power non-sacrificial Series Mode Surge Suppression (SMSS) is also available as a factory-installed option.



    Payment Options



    Shipping Options

    MODEL TOT MAX CE



    CONFIGURATION SH (Shelf Model), RK (Rack Mount), IW (In-Wall)



    CHASSIS 2U



    INPUT VOLTAGE 220 – 240 VAC



    OUTPUT VOLTAGE 220 – 240 VAC



    INPUT BREAKER 1 X 8A FUSE



    OUTPUT CURRENT 8 A



    POWER RATING 1,820 VA



    FREQUENCY 50 – 60 Hz

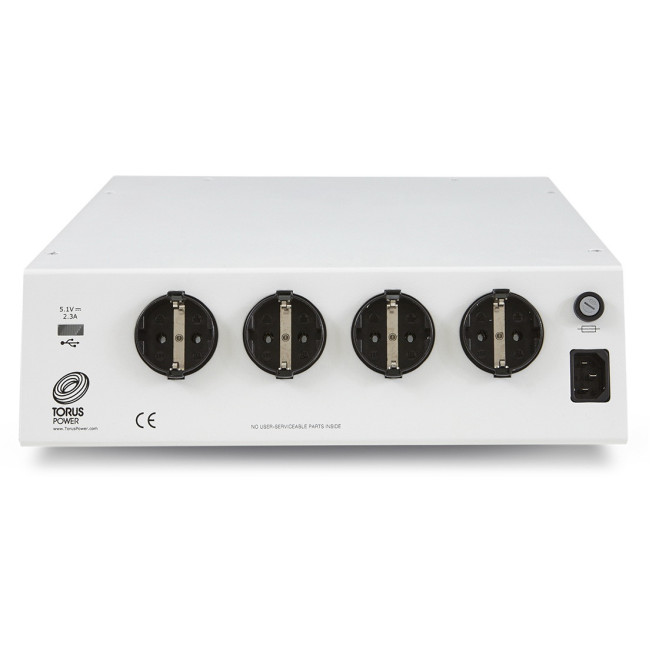

    NO. OUTLETS 4



    INLET TYPE IEC 15A (Shelf, RK)



    OUTLET TYPE SCHUKO CEE 7/7, 16A / 250V



    OUTPUT USB 5.1 VDC nominal / 2300 mA maximum



    WEIGHT (SHELF) 38.9 LBS (17.7 KG)

    WEIGHT (RM) 39.8 LBS (18.1 KG)

    WEIGHT (IW) 43.3 LBS (19.7 KG)



    DIMENSIONS (SH) W X H X D - MM 318 X 101 X 369

    DIMENSIONS (SH) W X H X D - IN 12.5 X 4.0 X 14.5



    DIMENSIONS (RK) W X H X D - MM 480 X 88 X 373

    DIMENSIONS (RK) W X H X D - IN 18.9 X 3.4 X 14.7



    DIMENSIONS (IW) W X H X D - MM 419 X 90 X 483

    DIMENSIONS (IW) W X H X D - IN 16.5 X 3.5 X 19.0

    Product Details
