RM SERIES Technology
A popular model in the RM series is the RM 16CE. Smaller models RM 8 CE are ideal for mid-size systems, while the RM 4 CE can be dedicated to front-end components, media servers, etc.
Larger custom installation models rated 30 Amp and 45 Amp provide clean, protected power for the largest custom installed systems.
FACEPLATE: SILVER (CS) or BLACK (CB)
Up to 12 interest free installments with Credit Card
Shipping Options

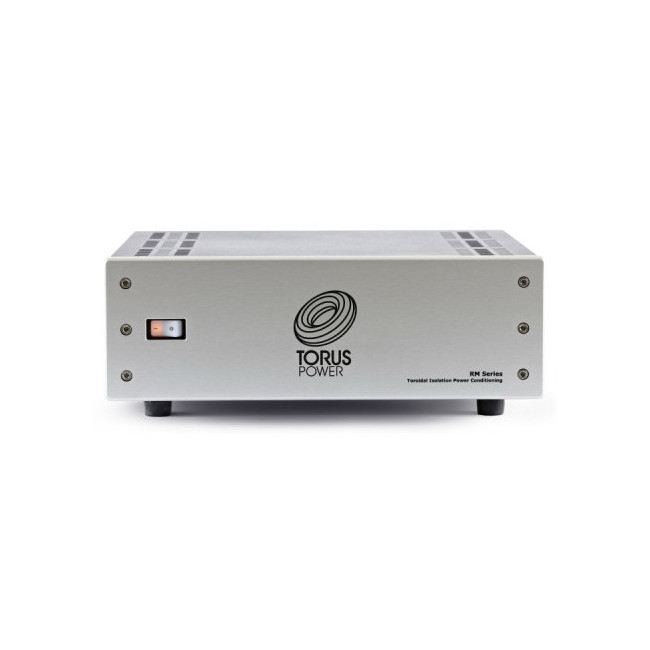

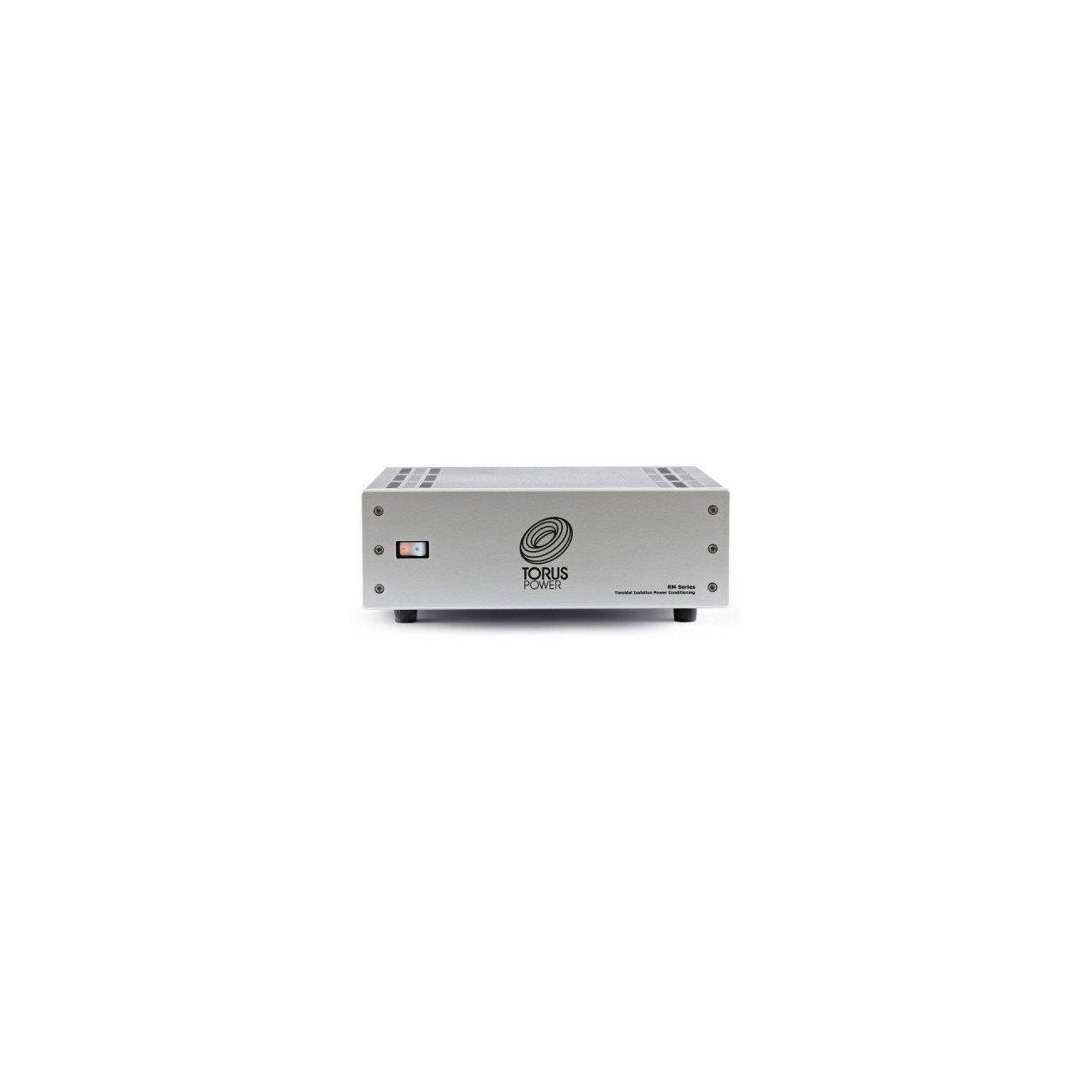

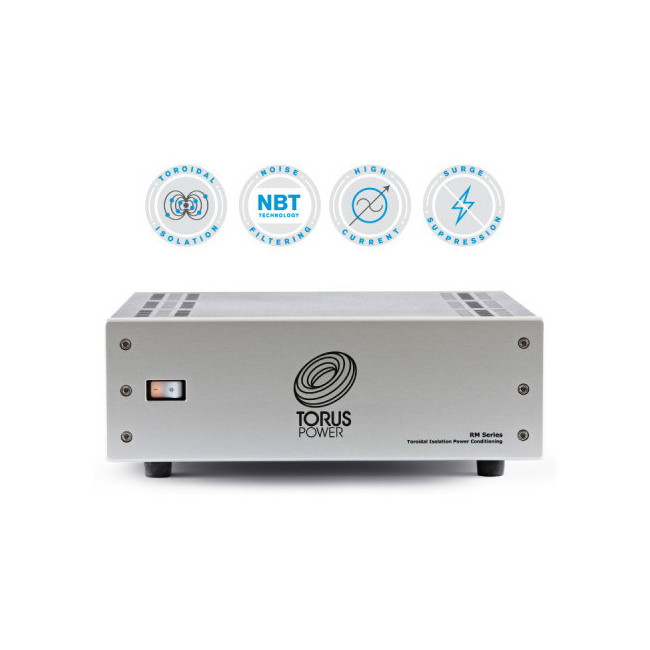

RM 8 CE SPECIFICATIONS
FACEPLATE SILVER (CS), BLACK (CB)
CHASSIS 3U
INPUT V 220 – 240 VAC
OUTPUT VOLTS 220 – 240 VAC
INPUT CURRENT LIMITING* 8A (C)
OUTPUT CURRENT 8A
POWER VA 1,920
FREQUENCY 50 / 60 Hz
NO. OUTLETS 5 8 8 12
INLET TYPE 250V IEC 15A
OUTLET TYPE 250V SCHUKO CEE7, 16A
WEIGHT LB 75
WEIGHT KG 34
SIZE MM
W ** 483
D 419
H 159
SIZE IN
W ** 19 19 19 19
D 16.5 19 19 22
H 6.3 8 8 9.8
* (F) – Fuse(s) (C) – Circuit Breaker
** Width (W) is based on RACK MOUNT (RK) Faceplate
TOT Max
Toroidal Isolation & Noise Filtering
Description
Torus Power’s “TOT” Series consists of compact models that bring toroidal power conditioning to a new price point, affordable for most applications and packed with features, the TOT Series is an easy choice to improve performance of all audio and video systems.
The TOT MAX, rated at 8 Amps, can provide current to demanding power hungry systems including substantial power amplifiers.
All TOT models feature a courtesy USB charger outlet. Options include a dress aluminum faceplate (Black or Silver) and a 19″ rack mount adapter kit. TOT units include circuit protection through a replaceable varistor. Torus Power non-sacrificial Series Mode Surge Suppression (SMSS) is also available as a factory-installed option.
AVR 2 ELITE 16 CE
Full-feature state-of-the-art power transformer, isolating and protecting your system. Like all Torus Power products, the AVR ELITE series provides true isolation (using massive toroidal transformers) and protects all connected equipment from the risk of severe power line surges using series-mode surge suppression.
In addition, Torus AVR ELITE provides stable voltage to keep equipment running in the optimal range of 116VAC to 124VAC (120V +/- 4V) for any input voltage from 90V to 130VAC. (International units operate within nominal input voltage such as 220V, 230V, 240V; Torus AVR ELITE keeps them operating within a range of +/- 8 V.)
Faceplate availability: SILVER (CS) or BLACK (CB)
RM SERIES Technology
A popular model in the RM series is the RM 16CE. Smaller models RM 8 CE are ideal for mid-size systems, while the RM 4 CE can be dedicated to front-end components, media servers, etc.
Larger custom installation models rated 30 Amp and 45 Amp provide clean, protected power for the largest custom installed systems.
FACEPLATE: SILVER (CS) or BLACK (CB)
